106775-1
ActiveTE Connectivity AMP Connectors

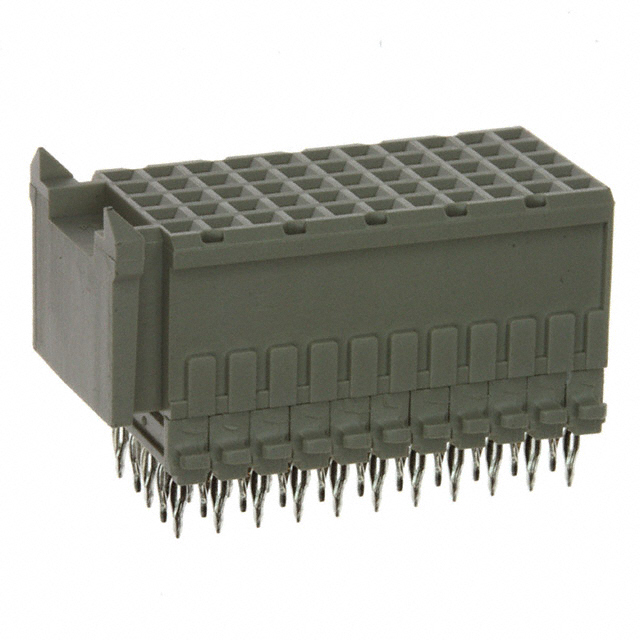

CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
106775-1
ActiveTE Connectivity AMP Connectors
CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 106775-1 |
|---|---|
| Connector Style | C 11 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 55 positions |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
106775 Series
CONN RECEPT 55POS 2MM PRESS-FIT
| Part | Connector Usage | Pitch [x] | Pitch [x] | Termination | Number of Positions Loaded | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Type | Number of Rows | Voltage Rating | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 106775-1 | Backplane | 0.079 in | 2 mm | Press-Fit | All | C 11 | -55 °C | 125 °C | 1.5 A | 0.76 Ám | 30 Áin | Gold | Receptacle, Female Sockets | 5 | 500 VAC | Through Hole | 55 positions |
Description
General part information
106775 Series
55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole
