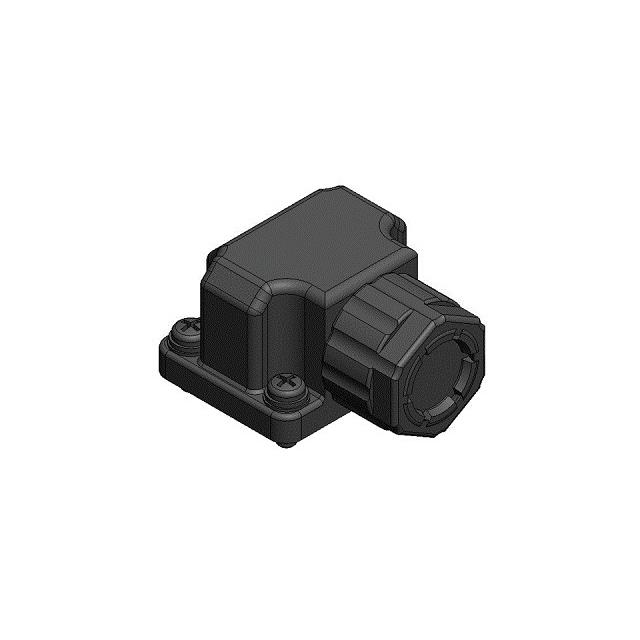

COMPACT WATERPROOF CONNECTOR 9 P

Search across all available documentation for this part.

Active

JAE Electronics

COMPACT WATERPROOF CONNECTOR 9 P

Technical Specifications

Parameters and characteristics for this part

Specification	JN14FR09SM1

Color	Black
Connector Type	Plug
Contact Termination	Crimp and Clamp
Contact Type	Female Socket
Features	Waterproof (Mated, IP67)
Insulation Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Number of Positions	Mounting Type	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Termination	Features	Insulation Material	Color
JAE Electronics JN14FR02SM1	2	Free Hanging (In-Line) Right Angle	Plug	Female Socket	125 °C	-40 °C	1	Crimp and Clamp	Waterproof (Mated IP67)	Synthetic Resin	Black
JAE Electronics JN14FR09SM1	9	Free Hanging (In-Line) Right Angle	Plug	Female Socket	125 °C	-40 °C	2	Crimp and Clamp	Waterproof (Mated IP67)	Synthetic Resin	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Black
