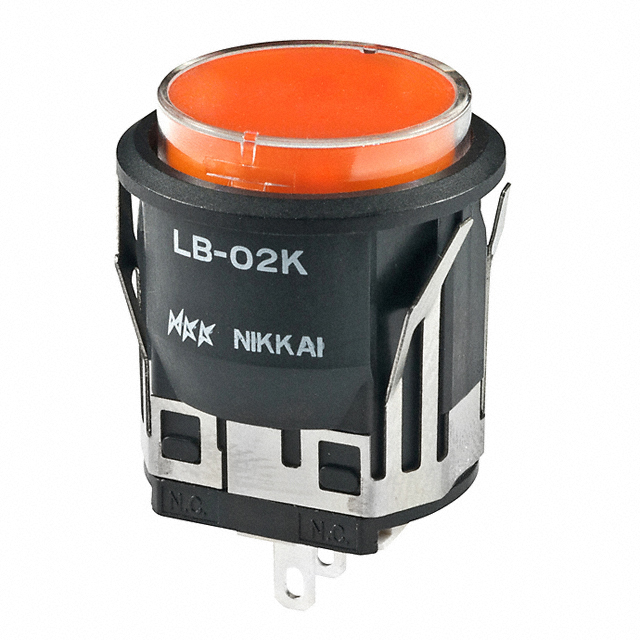

LB02KW01-5D24-JD

Active

NKK Switches

IND PB ILLUM RND LB SER AMB SLD

Search across all available documentation for this part.

Active

NKK Switches

IND PB ILLUM RND LB SER AMB SLD

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Lens Size [diameter]	Panel Cutout Shape	Ratings	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Voltage	Type	Current	Lens Color	Panel Cutout Dimensions [custom]
NKK Switches LB02KW01-5C12-JC	Quick Connect - 0.110" (2.8mm)	19 mm	Round	DC	Diffused	22.1 mm	0.87 in	Red	12 V	LED	26 mA	Red
NKK Switches LB02KW01-5F-JB	Quick Connect - 0.110" (2.8mm)	21.7 mm	Round		Clear	22 mm		Green	2.1 V	LED		White	0.87 in
NKK Switches LB02KW01-5F24-JF	Quick Connect - 0.110" (2.8mm)	19 mm	Round	AC	Clear	22.1 mm	0.87 in	Green	24 V	LED	13 mA	Green
NKK Switches LB02KW01-5C-JB	Quick Connect - 0.110" (2.8mm)	19 mm	Round		Clear	22.1 mm	0.87 in	Red	1.9 V	LED	30 mA	White
NKK Switches LB02KW01-5F12-JF	Quick Connect - 0.110" (2.8mm)	19 mm	Round	DC	Diffused	22.1 mm	0.87 in	Green	12 V	LED	26 mA	Green
NKK Switches LB02KW01-5D24-JD	Quick Connect - 0.110" (2.8mm)	19 mm	Round	AC	Clear	22.1 mm	0.87 in	Amber	24 V	LED	13 mA	Amber
NKK Switches LB02KW01-5C05-JC	Quick Connect - 0.110" (2.8mm)	19 mm	Round	AC	Clear	22.1 mm	0.87 in	Red	5 V	LED	52 mA	Red
NKK Switches LB02KW01-5F-JF	Quick Connect - 0.110" (2.8mm)	19 mm	Round		Clear	22.1 mm	0.87 in	Green	2.1 V	LED	30 mA	Green
NKK Switches LB02KW01-6F-JB	Quick Connect - 0.110" (2.8mm)	19 mm	Round		Diffused	22.1 mm	0.87 in	Green	3.3 V	LED	30 mA	Green
NKK Switches LB02KW01-5C12-JB	Quick Connect - 0.110" (2.8mm)	19 mm	Round	DC	Diffused	22.1 mm	0.87 in	Red	12 V	LED	26 mA	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Amber Clear 24V 13mA Quick Connect - 0.110" (2.8mm)
