J1021CS13VDC.20

Active

CIT Relay and Switch

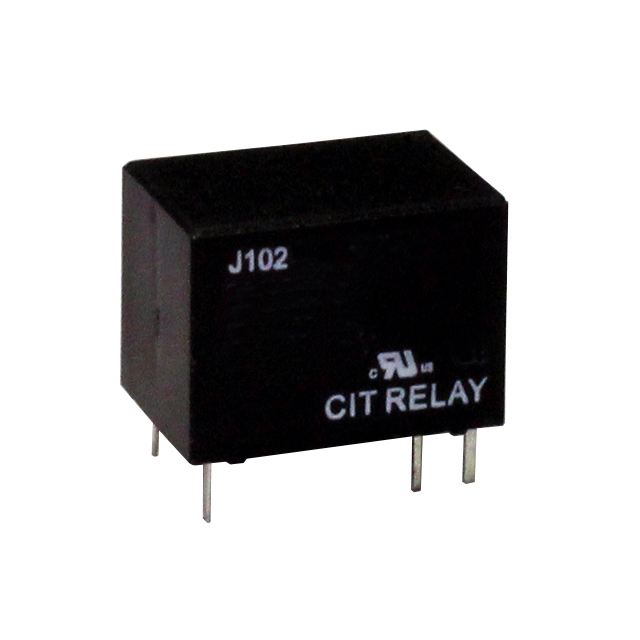

RELAY GENERAL PURPOSE SPDT 1A 3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J1021CS13VDC.20

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE SPDT 1A 3V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J1021CS13VDC.20

Coil Current	66.7 mA
Coil Resistance	45 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	1 A
Load - Max Switching	300 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	2.25 VDC
Must Release Voltage	0.3 VDC
Operate Time	5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage	150 VDC, 300 VAC
Termination Style	PC Pin

J1021CS1 Series

Part	Switching Voltage	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Resistance	Load - Max Switching	Must Release Voltage	Contact Form	Contact Material	Operate Time	Termination Style	Release Time	Mounting Type	Coil Current	Relay Type	Contact Rating (Current)	Seal Rating	Coil Voltage
CIT Relay and Switch J1021CS13VDC.45	150 VDC 300 VAC	2.25 VDC	85 °C	-40 °C	Non Latching	20 Ohms	150 W 300 VA	0.3 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	150 mA	General Purpose	1 A	Sealed - Fully
CIT Relay and Switch J1021CS16VDC.36	150 VDC 300 VAC	4.5 VDC	85 °C	-40 °C	Non Latching	100 Ohms	150 W 300 VA	0.6 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	60 mA	General Purpose	1 A	Sealed - Fully
CIT Relay and Switch J1021CS16VDC.45	150 VDC 300 VAC	4.5 VDC	85 °C	-40 °C	Non Latching	80 Ohms	150 W 300 VA	0.6 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	75 mA	General Purpose	1 A	Sealed - Fully
CIT Relay and Switch J1021CS13VDC.36	150 VDC 300 VAC	2.25 VDC	85 °C	-40 °C	Non Latching	25 Ohms	150 W 300 VA	0.3 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	120 mA	General Purpose	1 A	Sealed - Fully
CIT Relay and Switch J1021CS124VDC.45	150 VDC 300 VAC	18 VDC	85 °C	-40 °C	Non Latching	1280 Ohms	150 W 300 VA	2.4 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	18.8 mA	General Purpose	1 A	Sealed - Fully	24 VDC
CIT Relay and Switch J1021CS13VDC.20	150 VDC 300 VAC	2.25 VDC	85 °C	-40 °C	Non Latching	45 Ohms	150 W 300 VA	0.3 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	66.7 mA	General Purpose	1 A	Sealed - Fully
CIT Relay and Switch J1021CS124VDC.20	150 VDC 300 VAC	18 VDC	85 °C	-40 °C	Non Latching	2.88 kOhms	150 W 300 VA	2.4 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	8.3 mA	General Purpose	1 A	Sealed - Fully	24 VDC
CIT Relay and Switch J1021CS19VDC.20	150 VDC 300 VAC	6.75 VDC	85 °C	-40 °C	Non Latching	405 Ohms	150 W 300 VA	0.9 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	22.2 mA	General Purpose	1 A	Sealed - Fully	9 VDC
CIT Relay and Switch J1021CS112VDC.45	150 VDC 300 VAC	9 VDC	85 °C	-40 °C	Non Latching	320 Ohms	150 W 300 VA	1.2 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	37.5 mA	General Purpose	1 A	Sealed - Fully	12 VDC
CIT Relay and Switch J1021CS112VDC.36	150 VDC 300 VAC	9 VDC	85 °C	-40 °C	Non Latching	400 Ohms	150 W 300 VA	1.2 VDC	SPDT (1 Form C)	Silver (Ag)	5 ms	PC Pin	5 ms	Through Hole	30 mA	General Purpose	1 A	Sealed - Fully	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	4000	$ 0.87

Description

General part information

J1021CS1 Series

General Purpose Relay SPDT (1 Form C) Through Hole
