855-006-103R001

Active

MH Connectors

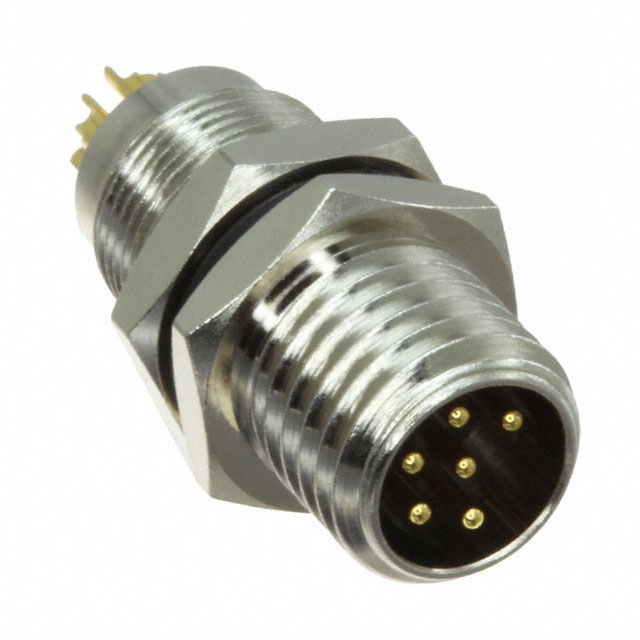

CONN RCPT MALE 6POS SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 6POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	855-006-103R001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-6
Voltage Rating	30 VDC

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Ingress Protection	Insert Material	Voltage Rating	Current Rating (Amps)	Shell Finish	Shell Material	Shell Size - Insert	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Mounting Feature	Primary Material
MH Connectors 855-006-103R001	6	Flash	Gold	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	30 VDC	1.5 A	Nickel	Brass	M8-6	Brass	85 °C	-40 °C	Silver	UL94 V-0	Bulkhead - Rear Side Nut	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.86

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
