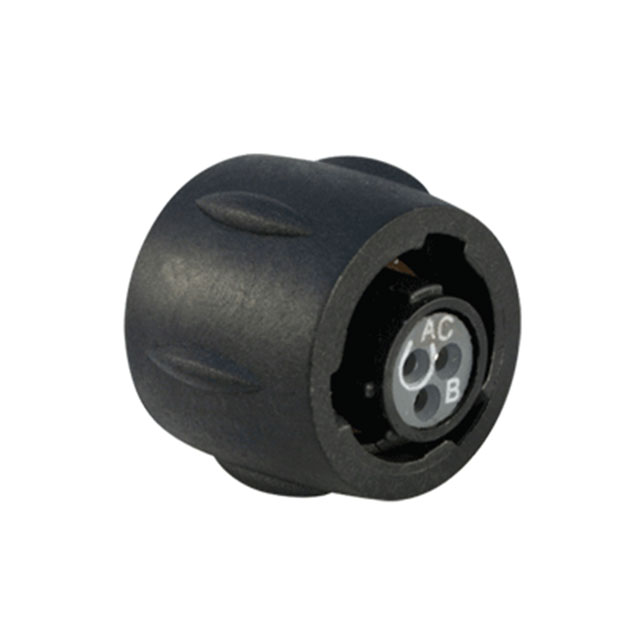

UTS68E3AS

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

UTS68E3AS

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.65

Description

General part information

UTS68 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS68E3AS	UTS68 Series

Applications	Instrumentation, Energy, Lighting, Telecommunications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	16 Áin	16 Áin
Contact Finish Thickness - Mating	0.41 Ám	0.41 Ám
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	7 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant	Coupling Nut, UV Resistant
Ingress Protection	IP68, IP69K	IP68, IP69K
Insert Material	Polychloroprene	Polychloroprene
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 4
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N, W
Primary Material	Plastic	Plastic
Shell Size - Insert	8-3A	8-3A, 8-2, 8-33, 8-4, 8-3
Shell Size - Insert	-	8
Shell Size - Insert	-	98
Shielding	Unshielded	Unshielded
Voltage Rating	250 VDC	250 VDC

UTS68 Series

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Insert Material	Voltage Rating	Fastening Type	Contact Material	Contact Finish - Mating	Ingress Protection	Primary Material	Material Flammability Rating	Orientation	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Current Rating (Amps)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Connector Type	Mounting Type	Shielding	Shell Size - Insert	Number of Positions
Souriau-Sunbank by Eaton UTS68E98P	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant	8	98	7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Male Pins, Plug	Free Hanging (In-Line)	Unshielded
Souriau-Sunbank by Eaton UTS68E3AS	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-3A
Souriau-Sunbank by Eaton UTS68E2SW	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	W	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-2	2
Souriau-Sunbank by Eaton UTS68E33S	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-33
Souriau-Sunbank by Eaton UTS68E3AP	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Male Pins, Plug	Free Hanging (In-Line)	Unshielded	8-3A
Souriau-Sunbank by Eaton UTS68E4P	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Male Pins, Plug	Free Hanging (In-Line)	Unshielded	8-4	4
Souriau-Sunbank by Eaton UTS68E3S	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-3
Souriau-Sunbank by Eaton UTS68E4S	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-4	4
Souriau-Sunbank by Eaton UTS68E98S	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant	8	98	7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded
Souriau-Sunbank by Eaton UTS68E2S	Polychloroprene	250 VDC	Bayonet Lock	Brass	Gold	IP68, IP69K	Plastic	UL94 V-0	N	Coupling Nut, UV Resistant			7 A	Energy, Instrumentation, Lighting, Telecommunications	-40 °C	105 ░C	16 Áin	0.41 Ám	Black	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	8-2	2
