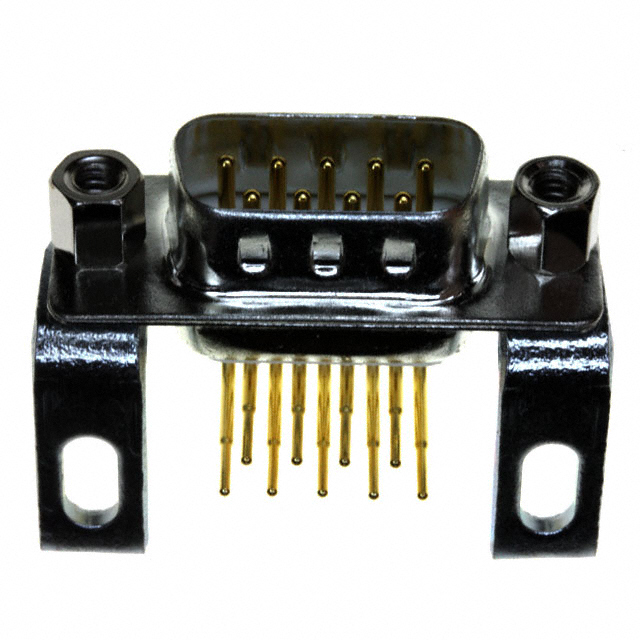

Specification	173-E09-112-141

Backset Spacing	0.283 in
Color	White
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets
Finish	Tin Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

173-E09 Series

Part	Termination	Features	Connector Style	Backset Spacing	Contact Finish	Number of Rows	Number of Positions	Shell Material	Finish	Material Flammability Rating	Contact Type	Shell Size	Connector Layout	Flange Feature	Current Rating	Mounting Type	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Form	Dielectric Material
NorComp Inc. 173-E09-213R461	Solder	Board Lock Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Nickel Plated	UL94 V-0	Signal	1	DE E	Housing Shell (4-40)	5 A	Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle	Copper	White	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E09-213R141	Solder	Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Nickel Plated	UL94 V-0	Signal	1	DE E	Female Screwlock (4-40) Mating Side	5 A	Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle	Copper	White	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E09-213R001	Solder		D-Sub	0.283 in	Gold	2	9	Steel	Nickel Plated	UL94 V-0	Signal	1	DE E	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle	Copper	White	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E09-111-001	Solder		D-Sub	0.283 in	Gold	2	9	Steel	Yellow Chromate Plated	UL94 V-0	Signal	1	DE E	Housing Shell (Unthreaded)	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Male Pins Plug		White	100 °C	-50 °C	Machined	Polybutylene Terephthalate (PBT)
NorComp Inc. 173-E09-112-141	Solder	Grounding Indents Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Tin Plated	UL94 V-0	Signal	1	DE E	Female Screwlock (4-40) Mating Side	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Male Pins Plug	Brass	White	100 °C	-50 °C	Machined	Polybutylene Terephthalate (PBT)
NorComp Inc. 173-E09-212-141	Solder	Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Tin Plated	UL94 V-0	Signal	1	DE E	Female Screwlock (4-40) Mating Side	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle		White	100 °C	-50 °C	Machined	Polybutylene Terephthalate (PBT)
NorComp Inc. 173-E09-211R001	Solder		D-Sub	0.283 in	Gold	2	9	Steel	Yellow Chromate Plated	UL94 V-0	Signal	1	DE E	Housing Shell (Unthreaded)	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle		White	100 °C	-50 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E09-211R141	Solder	Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Yellow Chromate Plated	UL94 V-0	Signal	1	DE E	Female Screwlock (4-40) Mating Side	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Female Sockets Receptacle		White	100 °C	-50 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E09-112-001	Solder	Grounding Indents	D-Sub	0.283 in	Gold	2	9	Steel	Tin Plated	UL94 V-0	Signal	1	DE E	Housing Shell (Unthreaded)	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Male Pins Plug	Brass	White	100 °C	-50 °C	Machined	Polybutylene Terephthalate (PBT)
NorComp Inc. 173-E09-111R241	Solder	Mounting Brackets	D-Sub	0.283 in	Gold	2	9	Steel	Yellow Chromate Plated	UL94 V-0	Signal	1	DE E	Mating Side Standard Screws (4-40)	5 A	Panel Mount Right Angle Through Hole	Flash	Flash	Male Pins Plug	Brass	White	100 °C	-50 °C	Machined	Nylon 6T Polyamide (PA6T)
