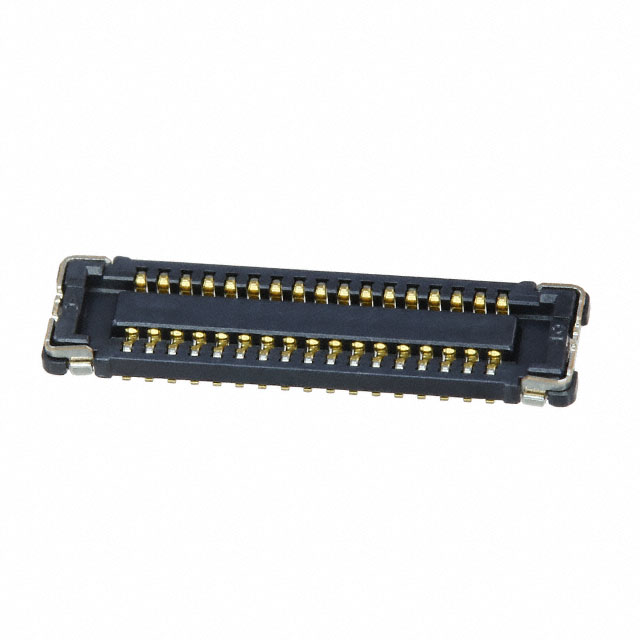

Specification	WP7B-S034VA1-R500

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	4 µin
Features	Solder Retention
Height Above Board	0.028 in
Mated Stacking Height	0.7 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch	0.016 in

WP7B-S03 Series

Part	Height Above Board	Number of Positions	Contact Finish	Contact Finish Thickness	Mated Stacking Height	Pitch	Connector Type	Number of Rows	Mounting Type	Features
JAE Electronics WP7B-S034VA1-R8000	0.028 in	34	Gold	4 µin	0.7 mm	0.016 in	Center Strip Contacts Receptacle	2	Surface Mount	Solder Retention
JAE Electronics WP7B-S034VA1-R500	0.028 in	34	Gold	4 µin	0.7 mm	0.016 in	Center Strip Contacts Receptacle	2	Surface Mount	Solder Retention
JAE Electronics WP7B-S034VA1-R6000	0.028 in	34	Gold	4 µin	0.7 mm	0.016 in	Center Strip Contacts Receptacle	2	Surface Mount	Solder Retention
