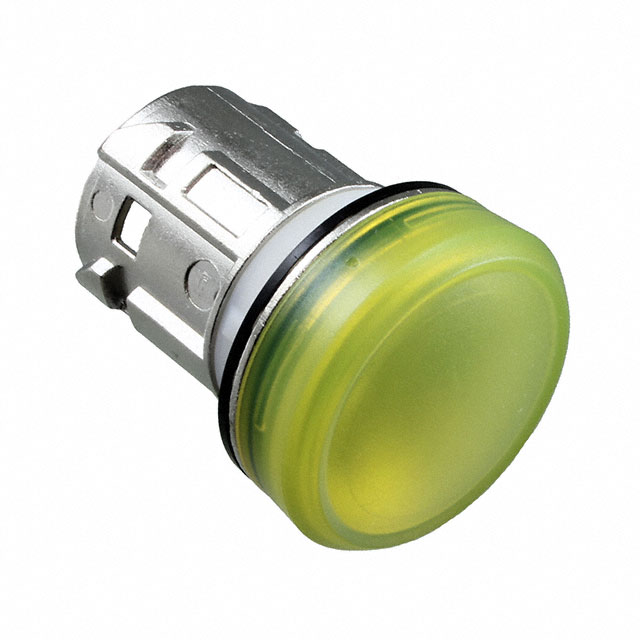

45-2T00.20G0.000
ActiveEAO
SWITCH ACTUATOR, EAO 45 SERIES INDICATOR SWITCHES, IP66, IP67, IP69K
Deep-Dive with AI
Search across all available documentation for this part.
45-2T00.20G0.000
ActiveEAO
SWITCH ACTUATOR, EAO 45 SERIES INDICATOR SWITCHES, IP66, IP67, IP69K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45-2T00.20G0.000 | 45-2T00 Series |
|---|---|---|
| Ingress Protection | IP69K, IP67, IP66 | IP69K, IP67, IP66 |
| Lamp Color | Yellow | Yellow, Red, Green, White, Blue, Amber |
| Lens Color | Yellow | Yellow, Red, Green, Colorless, White, Blue, Amber |
| Lens Size [diameter] | 29.5 mm | 29.5 mm |
| Lens Transparency | Clear | Clear |
| Panel Cutout Dimensions | 0.88 in | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | Round | Round |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | LED | LED |
45-2T00 Series
SWITCH ACTUATOR, EAO 45 SERIES INDICATOR SWITCHES, IP66, IP67, IP69K
| Part | Termination Style | Lamp Color | Lens Transparency | Lens Color | Panel Cutout Dimensions | Panel Cutout Dimensions | Panel Cutout Shape | Type | Lens Size [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|
Screw Terminal | Yellow | Clear | Yellow | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Red | Clear | Red | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Green | Clear | Green | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Green | Clear | Green | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Red | Clear | Red | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Clear | Colorless | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | ||
Screw Terminal | White | Clear | White | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Blue | Clear | Blue | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | Amber | Clear | Amber | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K | |
Screw Terminal | White | Clear | White | 0.88 in | 22.3 mm | Round | LED | 29.5 mm | IP66, IP67, IP69K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
45-2T00 Series
LED Panel Indicator Yellow Clear Screw Terminal
