7050045-503

Active

Laird Thermal Systems, Inc.

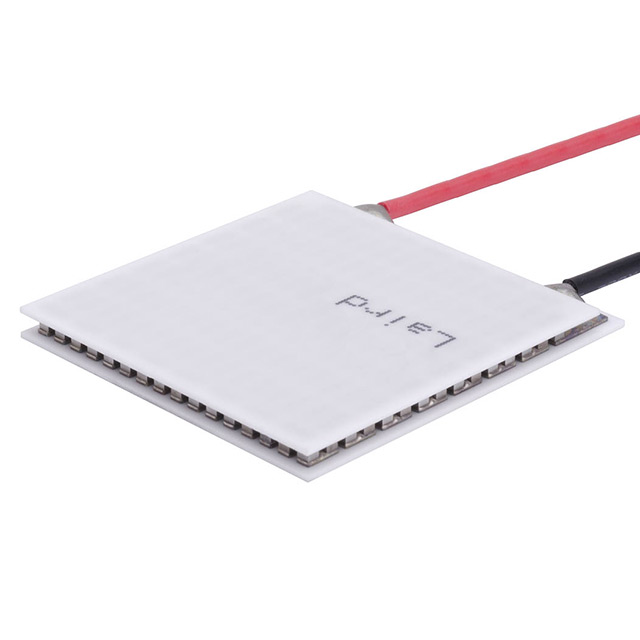

PELTIER MOD 43.9X39.9X3.33MM

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD 43.9X39.9X3.33MM

Technical Specifications

Parameters and characteristics for this part

Specification	7050045-503

Current - Max [Max]	8.5 A
Delta Tmax @ Th	64 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.33 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	73.9 W
Resistance	1.55 Ohms
Size / Dimension [x]	43.9 mm
Size / Dimension [y]	39.9 mm
Voltage - Max [Max]	14.3 V

Part	Features	Delta Tmax @ Th	Number of Stages	Operating Temperature	Current - Max [Max]	Qmax @ Th	Voltage - Max [Max]	Resistance	Size / Dimension [y]	Size / Dimension [x]	Height [z]
Laird Thermal Systems, Inc. 7050045-510	Lead Wires Sealed - Epoxy	64 °C	1	80 °C	8.5 A	73.9 W	14.3 V	1.55 Ohms	39.9 mm	43.9 mm	3.33 mm
Laird Thermal Systems, Inc. 7050045-503	Lead Wires Sealed - Silicone RTV	64 °C	1	80 °C	8.5 A	73.9 W	14.3 V	1.55 Ohms	39.9 mm	43.9 mm	3.33 mm
Laird Thermal Systems, Inc. 7050045-502	Lead Wires Non-Sealed	64 °C	1	80 °C	8.5 A	73.9 W	14.3 V	1.55 Ohms	39.9 mm	43.9 mm	3.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 28.61
