5500UG 007U500

Active

Belden Inc.

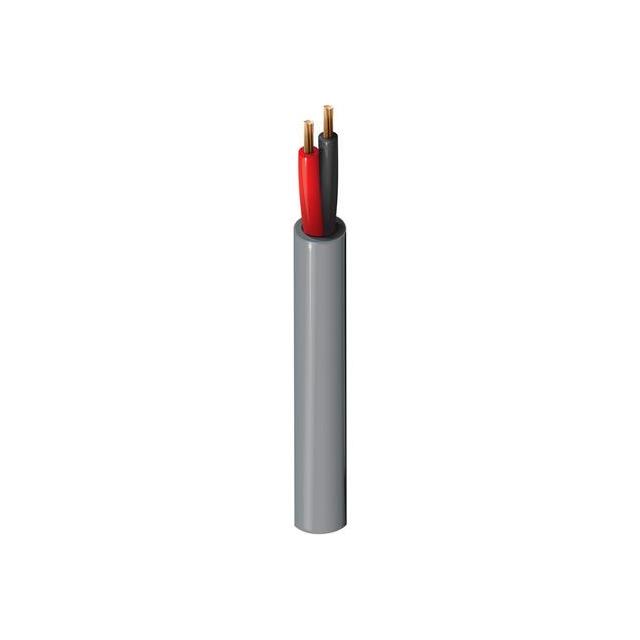

CABLE 2COND 22AWG VIO

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG VIO

Technical Specifications

Parameters and characteristics for this part

Specification	5500UG 007U500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.114 in
Jacket (Insulation) Diameter [diameter]	2.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Violet
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Voltage	Number of Conductors	Conductor Material	Wire Gauge	Jacket Color	Length [x]	Length [x]	Conductor Insulation	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 5500UG 007U500	0.114 in	2.89 mm	Poly-Vinyl Chloride (PVC)	300 V	2	Copper Bare	22 AWG	Violet	500 '	152.4 m	Polypropylene (PP)	Security Sound	7	30 AWG	Multi-Conductor	0.015 in	0.381 mm
Belden Inc. 5500UG 005U500	0.114 in	2.89 mm	Poly-Vinyl Chloride (PVC)	300 V	2	Copper Bare	22 AWG	Green	500 '	152.4 m	Polypropylene (PP)	Security Sound	7	30 AWG	Multi-Conductor	0.015 in	0.381 mm
Belden Inc. 5500UG 009C500	0.114 in	2.89 mm	Poly-Vinyl Chloride (PVC)		2	Copper Bare	22 AWG		500 '	152.4 m	Polypropylene (PP)	Alarm Security Sound	7	30 AWG	Multi-Conductor	0.015 in	0.381 mm
Belden Inc. 5500UG 003U500	0.114 in	2.89 mm	Poly-Vinyl Chloride (PVC)	300 V	2	Copper Bare	22 AWG	Orange	500 '	152.4 m	Polypropylene (PP)	Security Sound	7	30 AWG	Multi-Conductor	0.015 in	0.381 mm
Belden Inc. 5500UG U4FU500	0.114 in	2.89 mm	Poly-Vinyl Chloride (PVC)	300 V	2	Copper Bare	22 AWG	Beige	500 '	152.4 m	Polypropylene (PP)	Security Sound	7	30 AWG	Multi-Conductor	0.015 in	0.381 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.11

General part information

2 Conductor Multi-Conductor Cable Violet 22 AWG 500.0' (152.4m)
