T353K106K050AT

Active

KEMET

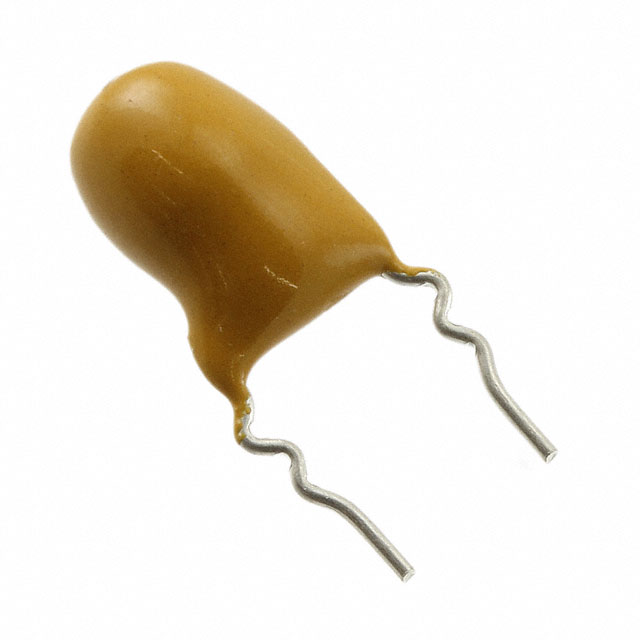

TANTALUM CAPACITOR, POLAR, 10 ΜF, 50 V, ± 10%, PC PIN, 5 MM, 1.6 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLAR, 10 ΜF, 50 V, ± 10%, PC PIN, 5 MM, 1.6 OHM

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Manufacturer Size Code	Type	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Features	ESR (Equivalent Series Resistance)
KEMET T353K106M050AS	0.63 in	16 mm	Through Hole	20 %	5.08 mm	0.2 in	-55 °C	125 °C	10 µF	K	Molded	50 VDC	0.35 in	8.9 mm	Radial	General Purpose
KEMET T353K106K050AT	0.63 in	16 mm	Through Hole	10 %	5.08 mm	0.2 in	-55 °C	125 °C	10 µF	K	Conformal Coated	50 VDC	0.35 in	8.9 mm	Radial	General Purpose
KEMET T353K226M035AT	0.63 in	16 mm	Through Hole	20 %	5.08 mm	0.2 in	-55 °C	125 °C	22 µF	K	Conformal Coated	35 V	0.35 in	8.9 mm	Radial	General Purpose	1.3 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Conformal Coated Tantalum Capacitors 50 V Radial
