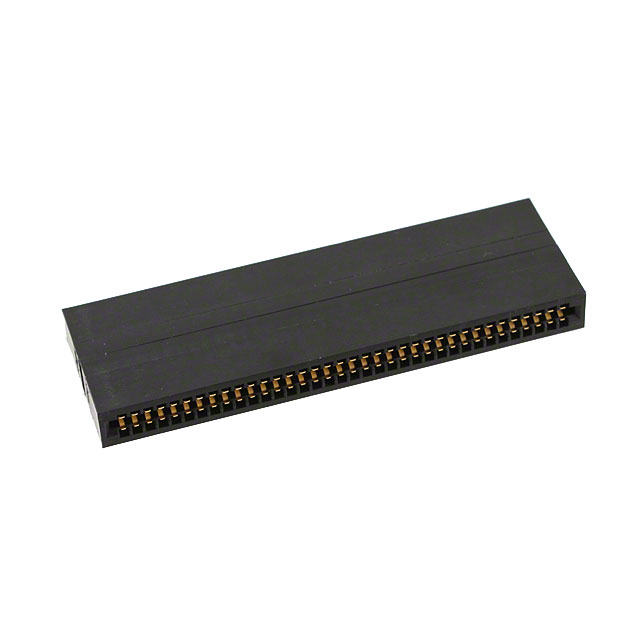

Specification	EAC36FSLN

Adapter Type	Card Slot to Card Slot
Card Thickness	0.062 in
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Current Rating (Per Contact)	3 A
Housing Material	PBT, Polybutylene Terephthalate
Mounting Type	Free Hanging (In-Line)
Number of Positions	72
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C

EAC36 Series

Part	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Card Thickness	Number of Positions	Mounting Type	Contact Material	Contact Finish Thickness	Adapter Type	Housing Material	Contact Finish	Flange Feature	Flange Feature Diameter
Sullins Connector Solutions EAC36FSLN	3 A	125 °C	-65 °C	0.062 in	72	Free Hanging (In-Line)	Phosphor Bronze	30 µin	Card Slot to Card Slot	PBT Polybutylene Terephthalate	Gold
Sullins Connector Solutions EAC36FSLD	3 A	125 °C	-65 °C	0.062 in	72	Panel Mount	Phosphor Bronze	30 µin	Card Slot to Card Slot	PBT Polybutylene Terephthalate	Gold	Top Opening Unthreaded	0.125 in
