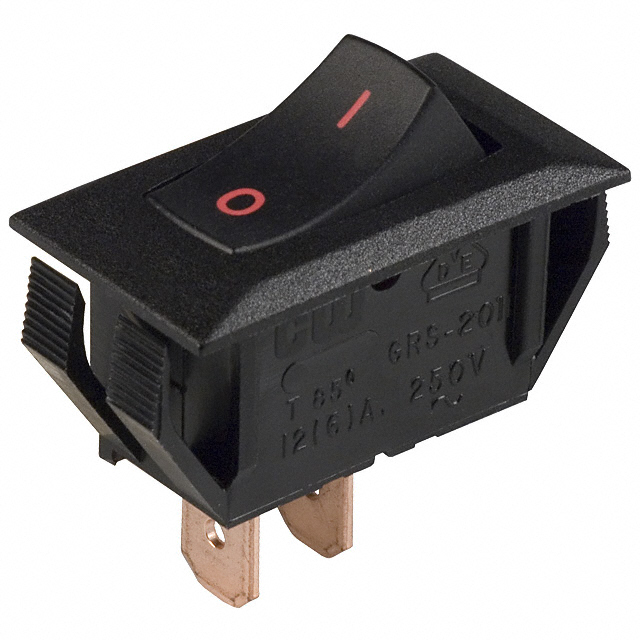

NAA-111-BI21-00

Active

CW Industries

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Indicon Rocker Switches

NAA-111-BI21-00

Active

CW Industries

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

DocumentsDatasheet Indicon Rocker Switches

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NAA-111-BI21-00	NAA-111 Series

Actuator Marking	O -	O -, OFF ON, Vertical, No Marking
Actuator Type	Concave (Curved)	Concave (Curved)
Circuit	SPST	SPST
Color - Actuator/Cap	Black, Red	Green, Black, Blue, Orange, Red, White
Current Rating (Amps)	16 A	16 A
Features	Two-Tone Rocker	Two-Tone Rocker
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.58 mm	28.58 mm
Panel Cutout Dimensions [y]	13.97 mm	13.97 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

NAA-111 Series

SWITCH ROCKER SPST 16A 125V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Mounting Type	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Circuit	Actuator Type	Features
CW Industries NAA-111-BI23-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Green	16 A	O -	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI24-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Blue	16 A	O -	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI25-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Orange	16 A	O -	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI14-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Blue	16 A	OFF ON, Vertical	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI15-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Orange	16 A	OFF ON, Vertical	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI13-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Green	16 A	OFF ON, Vertical	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI31-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Red	16 A	No Marking	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-WI19-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Orange, White	16 A	OFF ON, Vertical	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI21-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Red	16 A	O -	125 V	SPST	Concave (Curved)	Two-Tone Rocker
CW Industries NAA-111-BI11-00	13.97 mm	28.58 mm	On-Off	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	Black, Red	16 A	OFF ON, Vertical	125 V	SPST	Concave (Curved)	Two-Tone Rocker

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.51
		10	$ 1.35
		25	$ 1.28
		50	$ 1.22
		100	$ 1.16
		250	$ 1.11
		500	$ 1.05
		1000	$ 1.00

Description

General part information

NAA-111 Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Indicon Rocker Switches

Datasheet
