A29200-037

Active

Omnetics

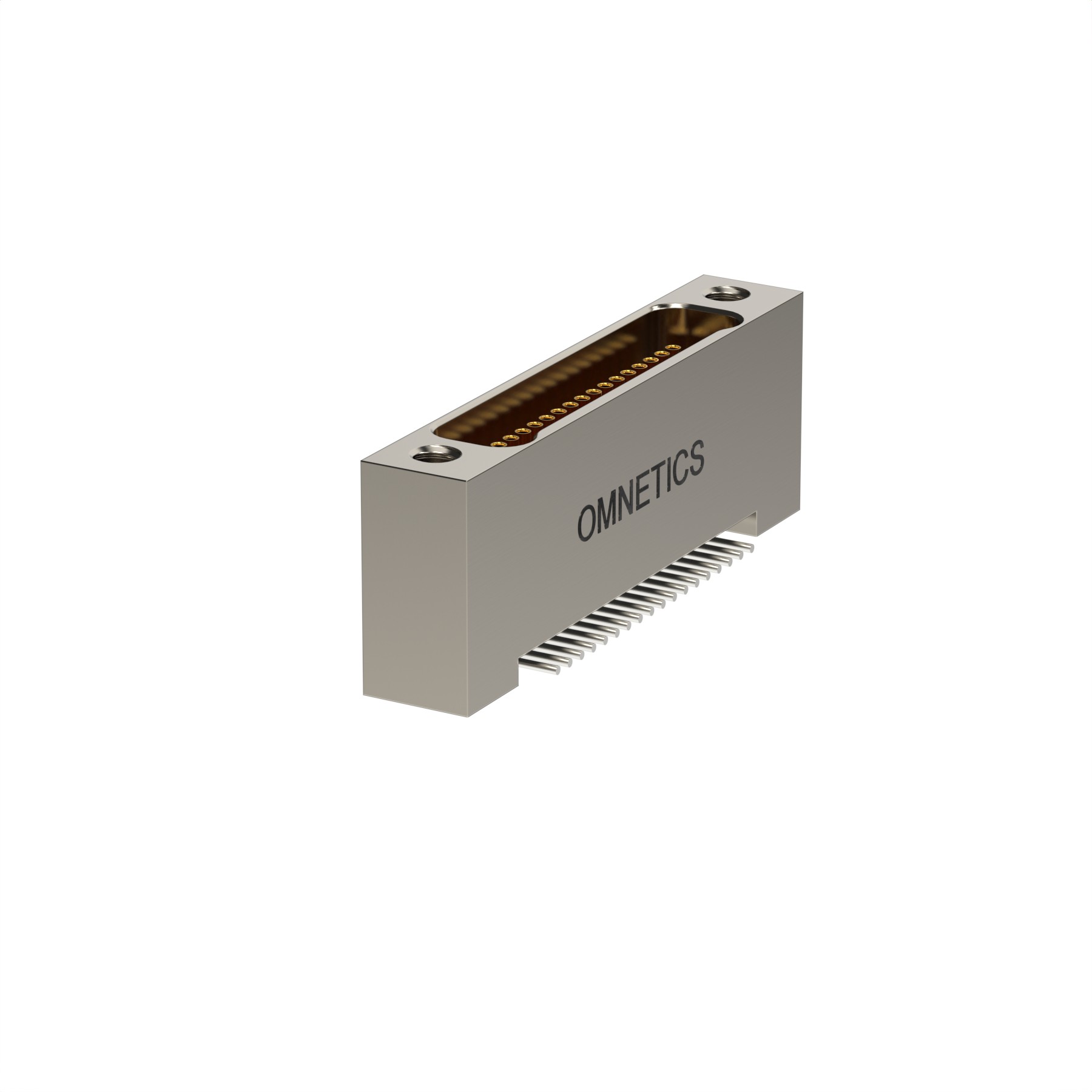

37P VERTICAL WELDING 2 SMD D-SUB / VGA CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A29200-037

Active

Omnetics

37P VERTICAL WELDING 2 SMD D-SUB / VGA CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A29200-037

Connector Style	D-Type, Nano-D
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)
Flange Feature [Max] [custom]	80
Flange Feature [Max] [custom]	80
Flange Feature [Min] [custom]	0
Flange Feature [Min] [custom]	0
Mounting Type	Surface Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Nickel Plated, Aluminum
Shell Size, Connector Layout [custom]	0.025
Shell Size, Connector Layout [custom]	0.04
Termination	Solder

MNSO Series

Part	Dielectric Material	Number of Rows	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Connector Style	Termination	Number of Positions	Contact Finish	Contact Type	Flange Feature [Max] [custom]	Flange Feature [Max] [custom]	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Flange Feature [Max]	Flange Feature [Min]
Omnetics A29200-009	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount	Copper Alloy	D-Type Nano-D	Solder	9	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-009	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	9	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29200-021	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount	Copper Alloy	D-Type Nano-D	Solder	21	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-085	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	85	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04	Housing/Shell	80	0
Omnetics A29100-065	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	65	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29200-037	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount	Copper Alloy	D-Type Nano-D	Solder	37	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-021	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	21	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-051	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	51	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-015	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder	15	Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04
Omnetics A29100-025	Liquid Crystal Polymer (LCP)	2	Aluminum Nickel Plated	50 µin	1.27 µm	Surface Mount Right Angle	Copper Alloy	D-Type Nano-D	Solder		Gold	Signal	80	80	Receptacle Female Sockets	0.025	0.04

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 271.34
		10	$ 212.84
	Digi-Reel®	1	$ 271.34
		10	$ 212.84
	Tape & Reel (TR)	25	$ 194.39
		50	$ 181.97
LCSC	Piece	1	$ 216.45
		200	$ 203.30
		500	$ 196.50
		1000	$ 193.14

Description

General part information

MNSO Series

37 Position D-Type, Nano-D Receptacle, Female Sockets Connector
