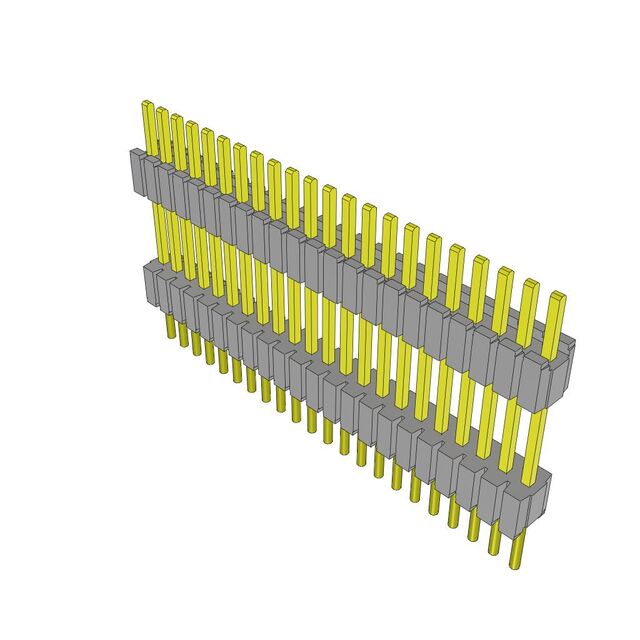

DWM-22-56-G-S-400

Active

Samtec Inc.

CONN HDR 22POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DWM-22-56-G-S-400

Active

Samtec Inc.

CONN HDR 22POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-22-56-G-S-400

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.625 in
Length - Overall Pin [x]	15.875 mm
Length - Post (Mating) [x]	0.105 in
Length - Post (Mating) [x]	2.667 mm
Length - Stack Height [x]	0.4 in
Length - Stack Height [x]	10.16 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

DWM-22 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Contact Finish - Post (Mating)	Number of Rows	Mounting Type	Length - Overall Pin	Length - Overall Pin	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DWM-22-58-G-S-397	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	4.775 mm	0.188 in	22 positions	Gold	1	Through Hole	17.907 mm	0.705 in	Solder
Samtec Inc. DWM-22-52-S-S-205	0.76 µm	30 µin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	2.54 mm	0.1 in	22 positions	Gold	1	Through Hole	10.8 mm	0.425 in	Solder	0.205 in	5.207 mm
Samtec Inc. DWM-22-56-G-S-400	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	2.667 mm	0.105 in	22 positions	Gold	1	Through Hole			Solder	0.4 in	10.16 mm	0.625 in	15.875 mm
Samtec Inc. DWM-22-55-G-D-310	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	4.572 mm	0.18 in	44	Gold	2	Through Hole			Solder	0.31 in	7.874 mm	0.61 in	15.494 mm	0.1 in	2.54 mm
Samtec Inc. DWM-22-60-G-D-400	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	7.747 mm	0.305 in	44	Gold	2	Through Hole			Solder	0.4 in	10.16 mm	0.825 in	20.955 mm	0.1 in	2.54 mm
Samtec Inc. DWM-22-52-T-S-220			Black	0.05 in	1.27 mm	0.12 in	3.048 mm	2.159 mm	0.085 in	22 positions	Tin	1	Through Hole	10.8 mm	0.425 in	Solder
Samtec Inc. DWM-22-60-G-D-610	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	2.413 mm	0.095 in	44	Gold	2	Through Hole			Solder			0.825 in	20.955 mm	0.1 in	2.54 mm	0.61 in	15.494 mm
Samtec Inc. DWM-22-53-S-D-265	0.76 µm	30 µin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	3.048 mm	0.12 in	44	Gold	2	Through Hole			Solder	0.265 in	6.731 mm	0.505 in	12.827 mm	0.1 in	2.54 mm
Samtec Inc. DWM-22-60-L-D-530	0.25 Ám	10 Áin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	4.445 mm	0.175 in	44	Gold	2	Through Hole			Solder			0.825 in	20.955 mm	0.1 in	2.54 mm	0.53 in	13.462 mm
Samtec Inc. DWM-22-01-S-D-200	0.76 µm	30 µin	Black	0.05 in	1.27 mm	0.12 in	3.048 mm	3.302 mm	0.13 in	44	Gold	2	Through Hole	11.43 mm	0.45 in	Solder					0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 5.56

Description

General part information

DWM-22 Series

22 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
