25058 BK005

Active

ALPHA WIRE

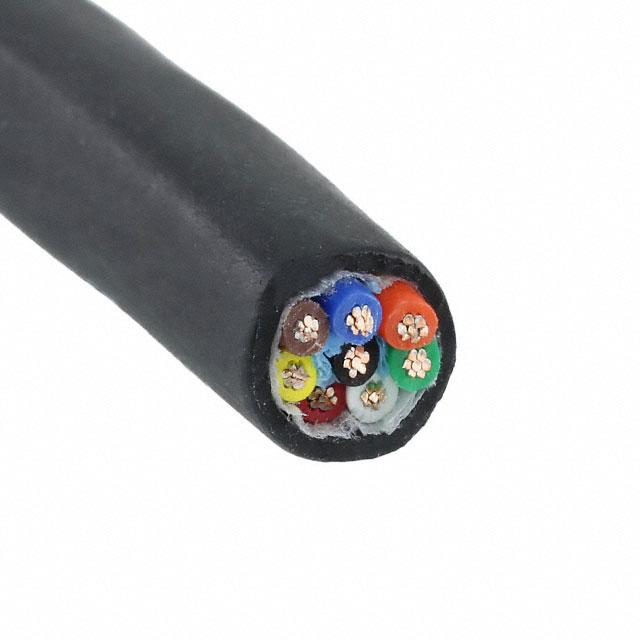

CABLE 8COND 20AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 20AWG BLACK 100'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 482.09

General part information

8 Conductor Multi-Conductor Cable Black 20 AWG 100.0' (30.5m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25058 BK005	25058 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.302 in	0.302 in
Jacket (Insulation) Diameter [diameter]	7.67 mm	7.67 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	-	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	8	8
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 8COND 20AWG BLACK 100'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Features	Ratings	Wire Gauge	Length [x]	Length [x]	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Spool Size	Spool Size	Length
ALPHA WIRE 25058 BK005	-30 ░C	90 °C	Multi-Conductor	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	20 AWG	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	0.302 in	7.67 mm	Copper, Tinned	Black	300 V	8	28	7
ALPHA WIRE 25058 BK199	-30 ░C	90 °C	Multi-Conductor	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	20 AWG			Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	0.302 in	7.67 mm	Copper, Tinned	Black	300 V	8	28	7	1000 ft	304.8 m	Enter Number of Feet in Order Quantity
