TPS92611EVM
ActiveTexas Instruments
EVALUATION MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS92611EVM
ActiveTexas Instruments
EVALUATION MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS92611EVM | TPS92611 Series |
|---|---|---|
| Applications | - | Lighting |
| Current - Output / Channel | 100 mA | 100 - 300 mA |
| Dimming | - | PWM |
| Grade | - | Automotive |
| Internal Switch(s) | - | False |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Package / Case | - | Exposed Pad, 8-MSOP, 8-TSSOP |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-HVSSOP |
| Type | - | Linear |
| Utilized IC / Part | TPS92611-Q1 | TPS92611-Q1 |
| Voltage - Input [Max] | 16 V | 16 V |
| Voltage - Input [Min] | 9 VDC | 9 VDC |
| Voltage - Output | - | 0 VDC |
| Voltage - Output | - | 40 V |
| Voltage - Supply (Max) | - | 40 V |
| Voltage - Supply (Min) | - | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS92611 Series
EVALUATION MODULE
| Part | Current - Output / Channel | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Min) [Min] | Qualification | Mounting Type | Voltage - Output [Min] | Voltage - Output [Max] | Type | Voltage - Supply (Max) [Max] | Dimming | Package / Case [x] | Package / Case [x] | Package / Case | Supplier Device Package | Internal Switch(s) | Number of Outputs | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100 mA | Non-Isolated | 1 | Board(s) | 16 V | 9 VDC | TPS92611-Q1 | |||||||||||||||||||
Texas Instruments TPS92611QDGNRQ1With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system-level component counts and significantly improves current accuracy and reliability.
The TPS92611-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution, with LED diagnostics, to deliver constant current for a single LED string. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements.
With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system-level component counts and significantly improves current accuracy and reliability.
The TPS92611-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution, with LED diagnostics, to deliver constant current for a single LED string. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements. | 300 mA | Lighting | -40 °C | 125 °C | 4.5 V | AEC-Q100 | Surface Mount | 0 VDC | 40 V | Linear | 40 V | PWM | 0.118 in | 3 mm | 8-MSOP, 8-TSSOP, Exposed Pad | 8-HVSSOP | 1 | Automotive |
Description
General part information
TPS92611 Series

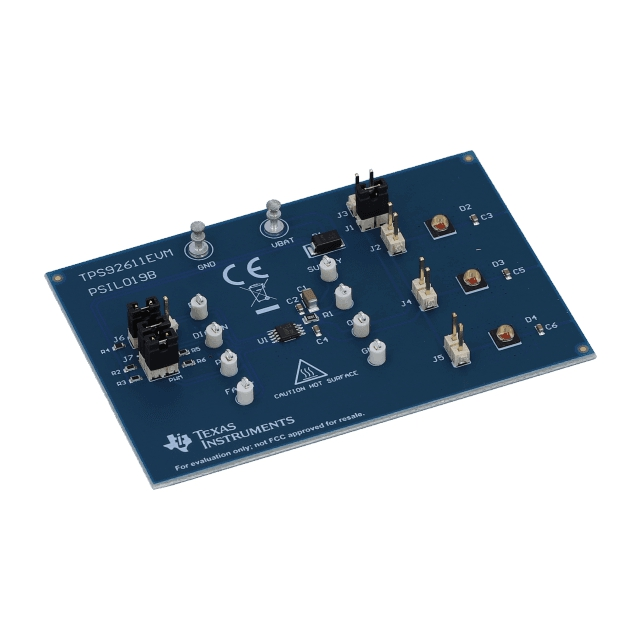

TPS92611-Q1 1, Non-Isolated Outputs LED Driver Evaluation Board
