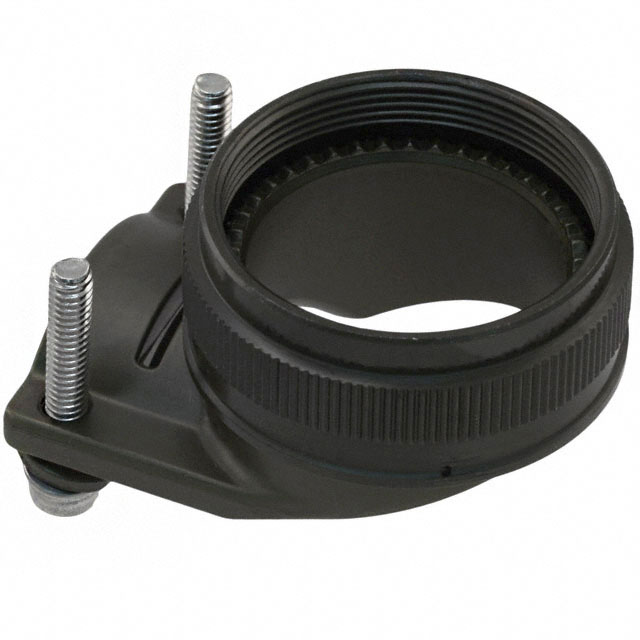

M85049/39-23W

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ23 H OLIVE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ23 H OLIVE

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/39-23W

Cable Exit	90 °
Cable Opening [Max] [custom]	0.823 in
Cable Opening [Max] [custom]	20.9 mm
Cable Opening [Min] [custom]	0.381 in
Cable Opening [Min] [custom]	9.68 mm
Color	Olive Drab
Diameter - Outside [diameter]	41.91 mm
Diameter - Outside [diameter]	1.65 "
Features	Strain Relief
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	H
Shell Size - Insert	23
Shielding	Unshielded
Type	Cable Clamp

Part	For Use With/Related Products	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Exit	Shell Size - Insert	Shell Size - Insert	Plating	Features	Type	Shielding	Material
AMPHENOL PCD M85049/39-23W	MIL-DTL-38999 Series III IV	41.91 mm	1.65 "	Olive Drab	0.381 in	0.823 in	20.9 mm	9.68 mm	90 °	H	23	Cadmium	Strain Relief	Cable Clamp	Unshielded	Aluminum Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Olive Drab Connector Cable Clamp 23, H

Technical documentation and resources

No documents available
