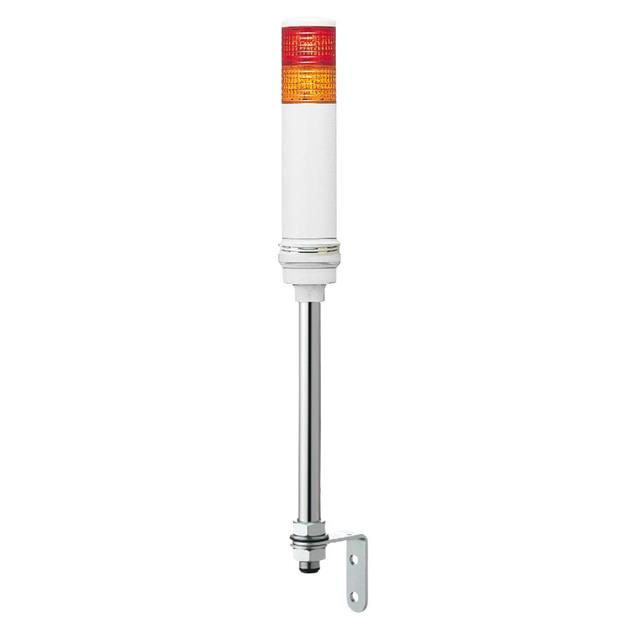

XVC6B25S

Active

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT ORG/RED FL 2STACK

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT ORG/RED FL 2STACK

Technical Specifications

Parameters and characteristics for this part

Specification	XVC6B25S

Function - Lighting	Steady, Flashing
Ingress Protection	IP23
Light Color	Orange, Red
Number of Stacks	2
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC

Part	Ingress Protection	Number of Stacks	Voltage - Supply	Termination Style	Light Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Function - Lighting	Weight	Weight	Type
SQUARE D BY SCHNEIDER ELECTRIC XVC6B5	IP23	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Steady	861.8 g	1.9 lbs	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B15SK	IP54 - Dust Protected Water Resistant	1	24 VAC	Wire Leads	Red	-10 °C	50 °C	Flashing Steady	217.72 g	0.48 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B25S	IP23	2	24 VAC	Wire Leads	Orange Red	-10 °C	50 °C	Flashing Steady			Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B25SK	IP54 - Dust Protected Water Resistant	2	24 VAC	Wire Leads	Orange Red	-10 °C	50 °C	Flashing Steady	249.48 g	0.55 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B5K	IP54 - Dust Protected Water Resistant	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Steady			Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B45SK	IP54 - Dust Protected Water Resistant	4	24 VAC	Wire Leads	Blue Green Orange Red	-10 °C	50 °C	Flashing Steady	349.27 g	0.77 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B55S	IP23	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Flashing Steady			Complete Unit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stack Light Complete Unit Orange, Red LED Wire Leads
