DC3332212S

Active

SAB North America

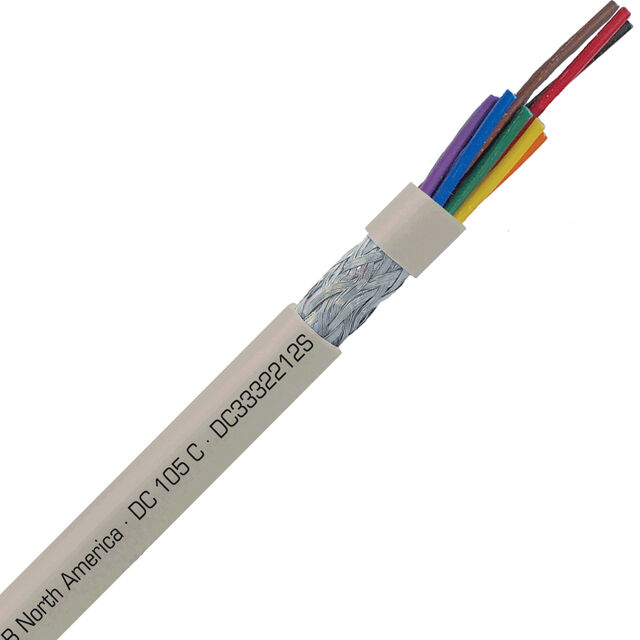

CABLE 12COND 22AWG GRY SHD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 12COND 22AWG GRY SHD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332212S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

CABLE 12COND 22AWG GRY SHD 1=1FT

Part	Shield Material	Length	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Wire Gauge	Conductor Insulation	Number of Conductors	Features	Voltage	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color
SAB North America DC3332212S	Copper, Tinned	Enter Number of Feet in Order Quantity	Braid, Foil	7	30 AWG	Copper, Tinned	22 AWG	Poly-Vinyl Chloride (PVC)	12	Drain Wire	300 V	Multi-Conductor	Poly-Vinyl Chloride (PVC)	8.13 mm	0.32 in	-25 °C	105 ░C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
