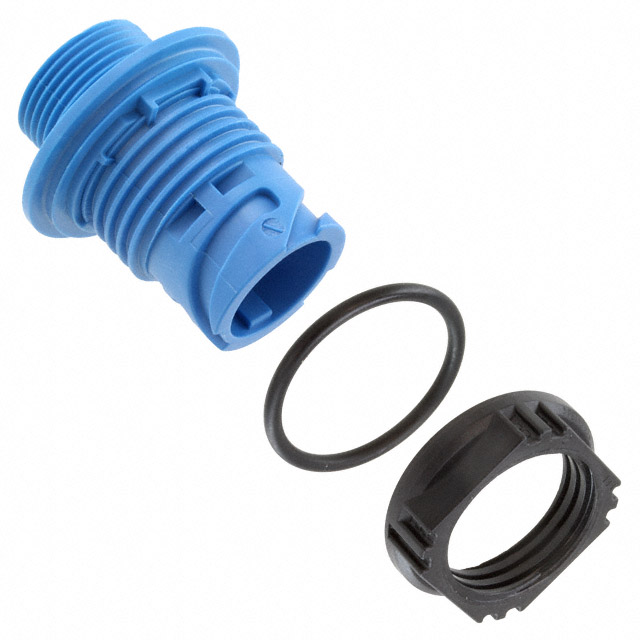

APD-5CP-H

Active

ITT Cannon, LLC

CONN CIRCULAR PIN 1 POS CRIMP ST JAM NUT 1 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN CIRCULAR PIN 1 POS CRIMP ST JAM NUT 1 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	APD-5CP-H

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Blue
Includes	1 O-Ring, 1 Connector, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	5
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Male Pins

Part	Includes	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Number of Positions	Mounting Feature	Contact Shape	Orientation	Shielding	Fastening Type	Connector Type	Insert Material	Note	Contact Type	Housing Color	Ingress Protection
ITT Cannon, LLC APD-5CP-H	1 Connector 1 Nut 1 O-Ring	For Male Pins	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	1	Bulkhead - Front Side Nut	Circular	5	Unshielded	Bayonet Lock	Receptacle Housing	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Crimp	Blue	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 7.40

General part information

1 (Power) Position Circular Connector Receptacle Housing Panel Mount
