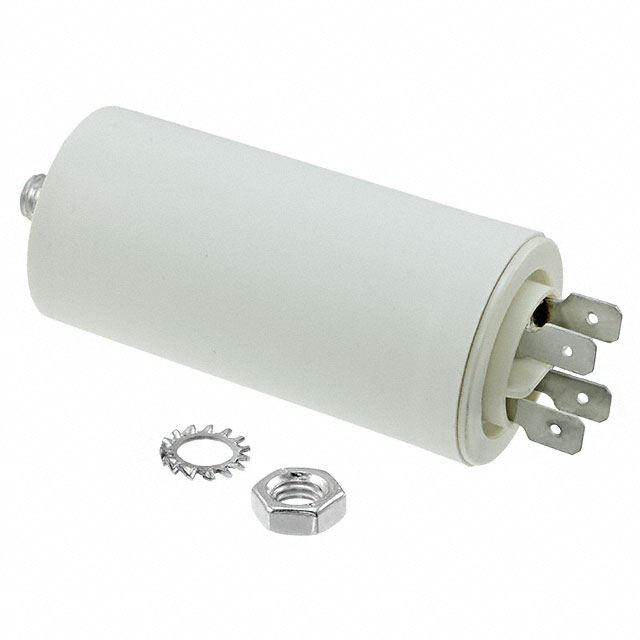

C276CC24150AA0J

Active

KEMET

CAP FILM 1.5UF 5% 470VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C276CC24150AA0J

Active

KEMET

CAP FILM 1.5UF 5% 470VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C276CC24150AA0J

Applications	Motor Run
Capacitance	1.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	2.362 in
Height - Seated (Max) [Max] [z]	60 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	25 mm
Size / Dimension [diameter]	0.984 "
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Tolerance	5 %
Voltage Rating - AC	470 V

C276CC Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Package / Case	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Termination	Termination	Tolerance	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Height - Seated (Max)	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET C276CCI5180LF0J	2.894 in	73.5 mm	Motor Run	Radial Can	18 µF	1.575 "	40 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)
KEMET C276CCF4400LG0J		2.382 in	Motor Run	Radial Can	4 µF	0.984 "	25 mm			Wire Leads	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)	60.5 mm
KEMET C276CC35600AA1J			Motor Run	Radial Can	60 µF	1.969 in	50 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		13.4 mm	0.528 in	123 mm	4.843 in
KEMET C276CC24630AA0J	2.303 in	58.5 mm	Motor Run	Radial Can		1.181 inches	30 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		10 mm	0.394 in
KEMET C276CC25100AA0J	2.303 in	58.5 mm	Motor Run	Radial Can	10 µF	1.378 in	35 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		10 mm	0.394 in
KEMET C276CC24150AA0J	2.362 in	60 mm	Motor Run	Radial Can	1.5 µF	0.984 "	25 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		10 mm	0.394 in
KEMET C276CC24300AA0J	2.362 in	60 mm	Motor Run	Radial Can	3 µF	0.984 "	25 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		10 mm	0.394 in
KEMET C276CC35120AA0J	2.992 in	76 mm	Motor Run	Radial Can	12 µF	1.378 in	35 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		13.4 mm	0.528 in
KEMET C276CC35100AA0J	2.303 in	58.5 mm	Motor Run	Radial Can	10 µF	1.378 in	35 mm	0.25 in	6.3 mm	Quick Connect	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)		13.4 mm	0.528 in
KEMET C276CCF4500LG0J	2.323 in	59 mm	Motor Run	Radial Can	5 µF	1.181 inches	30 mm			Wire Leads	5 %	470 V	-25 °C	85 °C	Chassis Stud Mount	Metallized Polypropylene (PP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
		10	$ 1.88
		50	$ 1.70
		162	$ 1.46
		648	$ 1.39
Newark	Each	100	$ 2.18
		500	$ 1.97
		1000	$ 1.71
		2500	$ 1.53

Description

General part information

C276CC Series

1.5 µF Film Capacitor 470V Polypropylene (PP), Metallized Radial, Can
