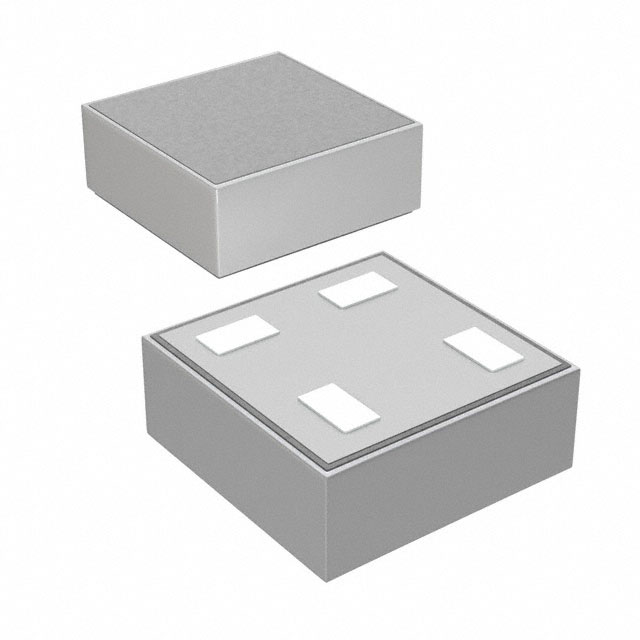

LDBL20D-33R
Active200 MA VERY LOW QUIESCENT CURRENT LINEAR REGULATOR IC IN (0.47X0.47) MM² ST STAMP™ PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDBL20D-33R |
|---|---|
| Control Features | Enable |
| Current - Output | 200 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 4-XFQFN |
| Protection Features | Soft Start, Over Temperature, Over Current |
| PSRR [Max] | 80 dB |
| PSRR [Min] | 55 dB |
| Supplier Device Package | 4-STSTAMP |
| Supplier Device Package [x] | 0.47 |
| Supplier Device Package [y] | 0.47 |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.97 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.49 | |||
| 5000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 1.02 | |||
| 25 | $ 0.97 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.49 | |||
| 5000 | $ 0.46 | |||
| Tape & Reel (TR) | 15000 | $ 0.14 | ||
| 30000 | $ 0.14 | |||
| 75000 | $ 0.13 | |||
Description
General part information
LDBL20 Series
The LDBL20 high accuracy voltage regulator provides 200 mA of maximum current from an input voltage ranging from 1.5 V to 5.5 V, with a typical dropout voltage of 200 mV.
It is available in the new STSTAMP™ package, allowing the maximum space saving.
The device is stabilized with a ceramic capacitor on the output. The ultra low drop voltage, low quiescent current and low noise features, together with the internal soft-start circuit, make the LDBL20 suitable for low power battery-operated applications.
