H3AWH-3436M

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34M/HHPL34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34M/HHPL34H

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch - Cable	Pitch - Cable	Cable Termination	Length [x]	Length [x]	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Features	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Length	Length	Length
Assmann WSW Components H3AWH-3418G	Socket to Plug	0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key	Gold	34	15 µin	0.38 µm
Assmann WSW Components H3AWH-3436M	Socket to Plug	0.05 "	1.27 mm	IDC	914.4 mm	3 ft	2	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key	Gold	34	15 µin	0.38 µm	Multiple Ribbon
Assmann WSW Components H3AWH-3406M	Socket to Plug	0.05 "	1.27 mm	IDC			2	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key	Gold	34	15 µin	0.38 µm	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AWH-3436G	Socket to Plug	0.05 "	1.27 mm	IDC	914.4 mm	3 ft	2	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key	Gold	34	15 µin	0.38 µm
Assmann WSW Components H3AWH-3406G	Socket to Plug	0.05 "	1.27 mm	IDC			2	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key	Gold	34	15 µin	0.38 µm		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

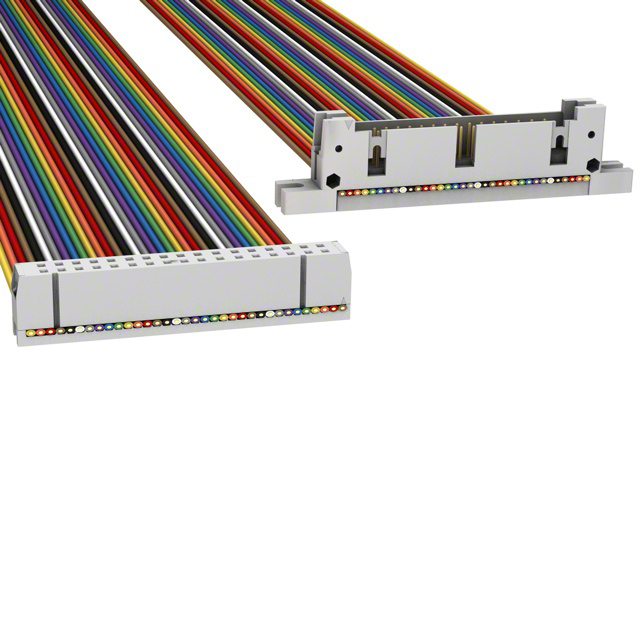

34 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
