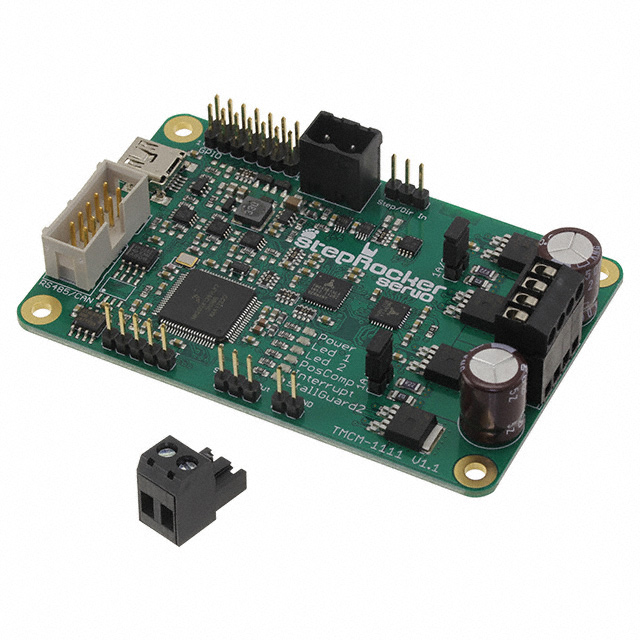

TMCM-1111 STEPROCKER
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROLLER DRIVER STEPPER
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1111 STEPROCKER
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROLLER DRIVER STEPPER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1111 STEPROCKER |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 1 A, 2.8 A |
| Interface | Step / Direction, RS-485, USB |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Type | Board |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 141.92 | |
TMCM-1111 Series
BOARD CONTROLLER DRIVER STEPPER
| Part | Current - Output | Voltage - Load [Min] | Voltage - Load [Max] | Motor Type | Type | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1111 STEPROCKER | 1 A, 2.8 A | 10 V | 30 V | Stepper | Board | Bipolar, Stepper | -25 °C | 60 °C | Chassis Mount | 24 V | 12 V | RS-485, Step / Direction, USB |
Description
General part information
TMCM-1111 Series
Stepper, Bipolar 12 ~ 24VDC Supply 1A, 2.8A 10 ~ 30V Load
