EN3P18MRAPCBW
ActiveSwitchcraft Inc.

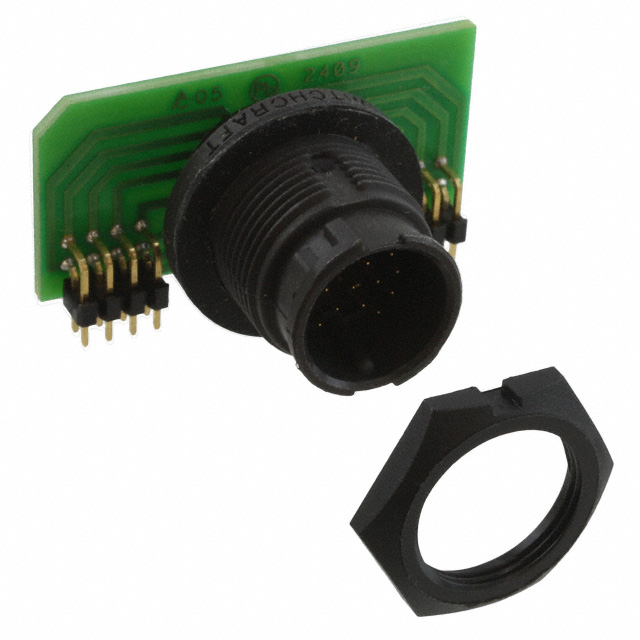

CONN RCPT MALE 18POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P18MRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT MALE 18POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P18MRAPCBW | EN3P18 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 18 | 18 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Circuit Board, Solder, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P18 Series
CONN RCPT FMALE 18POS SOLDER
| Part | Shielding | Connector Type | Ingress Protection | Color | Mounting Feature | Termination | Orientation | Mounting Type | Contact Material | Number of Positions | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Current Rating (Amps) | Fastening Type | Primary Material | Material Flammability Rating | Applications | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P18FRAPCBN | Unshielded | Receptacle, Female Sockets | IP66/IP68 | Black | Bulkhead - Front Side Nut | Circuit Board, Solder | Keyed | Panel Mount, Right Angle, Through Hole | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 2 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer |
Switchcraft Inc. EN3P18MRAPCBW | Unshielded | Male Pins, Receptacle | IP66/IP68 | Black | Bulkhead - Front Side Nut | Circuit Board, Solder | Keyed | Panel Mount, Right Angle, Through Hole | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 2 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer |
Switchcraft Inc. EN3P18F26SX | Unshielded | Receptacle, Female Sockets | IP66/IP68 | Black | Bulkhead - Front Side Nut | Keyed | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 3 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer | ||
Switchcraft Inc. EN3P18F26X | Unshielded | Receptacle, Female Sockets | IP66/IP68 | Black | Bulkhead - Front Side Nut | Keyed | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 3 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer | ||
Switchcraft Inc. EN3P18F26PX | Unshielded | Receptacle, Female Sockets | IP66/IP68 | Black | Bulkhead - Front Side Nut | Solder | Keyed | Panel Mount, Through Hole | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 3 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer |
Switchcraft Inc. EN3P18M26SX | Unshielded | Male Pins, Receptacle | IP66/IP68 | Black | Bulkhead - Front Side Nut | Keyed | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 3 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer | ||
Switchcraft Inc. EN3P18FRAPCBW | Unshielded | Receptacle, Female Sockets | IP66/IP68 | Black | Bulkhead - Front Side Nut | Circuit Board, Solder | Keyed | Panel Mount, Right Angle, Through Hole | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 2 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer |
Switchcraft Inc. EN3P18M26X | Unshielded | Male Pins, Receptacle | IP66/IP68 | Black | Bulkhead - Front Side Nut | Keyed | Copper Alloy | 18 | 250 VAC | 65 °C | -40 °C | Gold | 3 A | Bayonet Lock | Plastic | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Elastomer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.81 | |
| 10 | $ 18.85 | |||
Description
General part information
EN3P18 Series
18 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
