EN3P18F26X

Active

Switchcraft Inc.

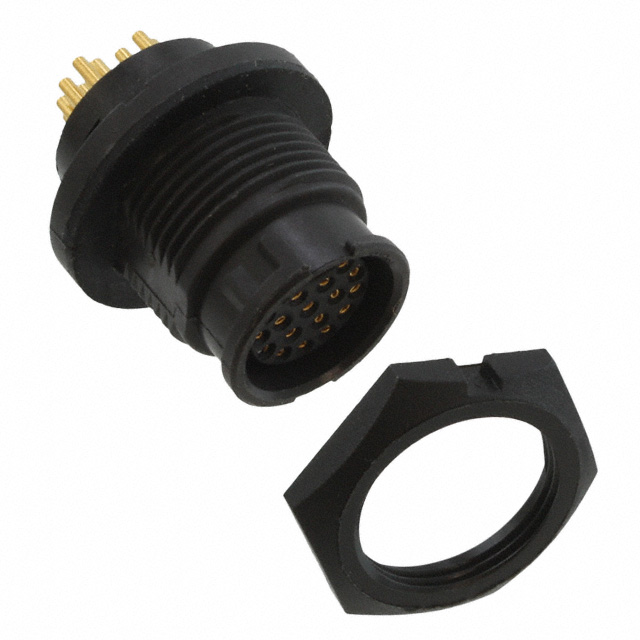

CONN RCPT FMALE 18P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P18F26X

Active

Switchcraft Inc.

CONN RCPT FMALE 18P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P18F26X	EN3P18 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	18	18
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Circuit Board, Solder, Solder
Voltage Rating	250 VAC	250 VAC

EN3P18 Series

CONN RCPT FMALE 18POS SOLDER

Part	Shielding	Connector Type	Ingress Protection	Color	Mounting Feature	Termination	Orientation	Mounting Type	Contact Material	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Primary Material	Material Flammability Rating	Applications	Insert Material
Switchcraft Inc. EN3P18FRAPCBN	Unshielded	Receptacle, Female Sockets	IP66/IP68	Black	Bulkhead - Front Side Nut	Circuit Board, Solder	Keyed	Panel Mount, Right Angle, Through Hole	Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	2 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18MRAPCBW	Unshielded	Male Pins, Receptacle	IP66/IP68	Black	Bulkhead - Front Side Nut	Circuit Board, Solder	Keyed	Panel Mount, Right Angle, Through Hole	Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	2 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18F26SX	Unshielded	Receptacle, Female Sockets	IP66/IP68	Black	Bulkhead - Front Side Nut		Keyed		Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	3 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18F26X	Unshielded	Receptacle, Female Sockets	IP66/IP68	Black	Bulkhead - Front Side Nut		Keyed		Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	3 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18F26PX	Unshielded	Receptacle, Female Sockets	IP66/IP68	Black	Bulkhead - Front Side Nut	Solder	Keyed	Panel Mount, Through Hole	Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	3 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18M26SX	Unshielded	Male Pins, Receptacle	IP66/IP68	Black	Bulkhead - Front Side Nut		Keyed		Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	3 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18FRAPCBW	Unshielded	Receptacle, Female Sockets	IP66/IP68	Black	Bulkhead - Front Side Nut	Circuit Board, Solder	Keyed	Panel Mount, Right Angle, Through Hole	Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	2 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer
Switchcraft Inc. EN3P18M26X	Unshielded	Male Pins, Receptacle	IP66/IP68	Black	Bulkhead - Front Side Nut		Keyed		Copper Alloy	18	250 VAC	65 °C	-40 °C	Gold	3 A	Bayonet Lock	Plastic	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Elastomer

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.25
		10	$ 37.36
		25	$ 33.90
		50	$ 31.57
		100	$ 29.46
		300	$ 26.51

Description

General part information

EN3P18 Series

18 Position Circular Connector Receptacle, Female Sockets Solder Cup
