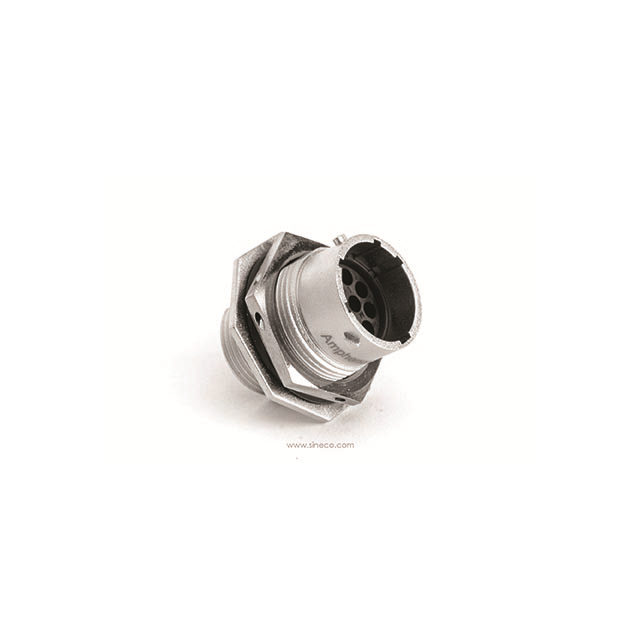

RT071412PNH03

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, MALE WITH SI

Deep-Dive with AI

DocumentsDatasheet ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT071412PNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	14-12
Shielding	Shielded
Type	For Male Pins

RT071412 Series

Part	Shell Material	Orientation	Shell Size - Insert	Note	Ingress Protection	Contact Shape	Primary Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shielding	Insert Material	Housing Color	Contact Size	Type	Mounting Feature	Fastening Type	Shell Finish	Features	Contact Type	Connector Type	Includes	Voltage Rating	Current Rating (Amps)	Termination	Contact Finish Thickness - Mating	Color	Contact Finish - Mating
Amphenol Sine Systems Corp RT071412PNHEC03	Zinc Alloy	N	14-12	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	Metal	12	125 °C	-40 °C	UL94 V-0	Shielded	Thermoplastic	Silver	16	For Male Pins	Bulkhead - Front Side Nut	Bayonet Lock	Nickel	Cap (Cover)	Crimp	Receptacle Housing
Amphenol Sine Systems Corp RT071412PNH03	Zinc Alloy	N	14-12	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular		12	125 °C	-40 °C	UL94 V-0	Shielded	Thermoplastic	Silver	16	For Male Pins	Bulkhead - Front Side Nut	Bayonet Lock	Nickel		Crimp	Receptacle Housing	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT071412PNHECR	Zinc Alloy	N	14-12	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	Metal	12	105 ░C	-40 °C	UL94 V-0	Shielded	Thermoplastic	Silver	16	For Male Pins	Bulkhead - Front Side Nut	Bayonet Lock	Nickel	Cap (Cover)	Crimp	Receptacle Housing
Amphenol Sine Systems Corp RT071412PNH-K	Zinc Die Cast	N	14-12		IP67 - Dust Tight Waterproof		Metal	12	105 ░C	-40 °C							Bulkhead - Front Side Nut	Bayonet Lock	Nickel			Male Pins Receptacle		250 VAC	13 A	Crimp	Flash	Silver	Gold
Amphenol Sine Systems Corp RT071412SNH-K	Zinc Die Cast	N	14-12		IP67 - Dust Tight Waterproof		Metal	12	105 ░C	-40 °C							Bulkhead - Front Side Nut	Bayonet Lock	Nickel			Receptacle Female Sockets		250 VAC	13 A	Crimp	Flash	Silver	Gold
Amphenol Sine Systems Corp RT071412SNH	Zinc Alloy	N	14-12	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular		12	105 ░C	-40 °C	UL94 V-0	Shielded	Thermoplastic	Silver	16	For Female Sockets	Bulkhead - Front Side Nut	Bayonet Lock	Nickel		Crimp	Receptacle Housing
