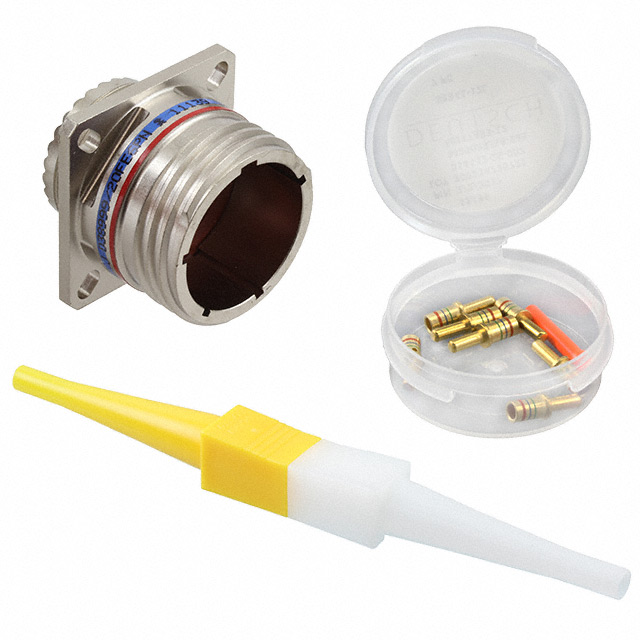

D38999/20FE6PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMIL-DTL-38999 III Quick Ref Guide
D38999/20FE6PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsMIL-DTL-38999 III Quick Ref Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20FE6PN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 23 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Number of Positions | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 17-6 |
| Shell Size, MIL | E |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.68 | |
| 1 | $ 250.58 | |||
| 1 | $ 252.06 | |||
| 10 | $ 52.59 | |||
| 10 | $ 232.21 | |||
| 10 | $ 240.06 | |||
| 25 | $ 223.85 | |||
| 25 | $ 46.40 | |||
| 50 | $ 41.52 | |||
| 100 | $ 36.41 | |||
Description
General part information
D38999/20FE Series
6 Position Circular Connector Receptacle, Male Pins Crimp
