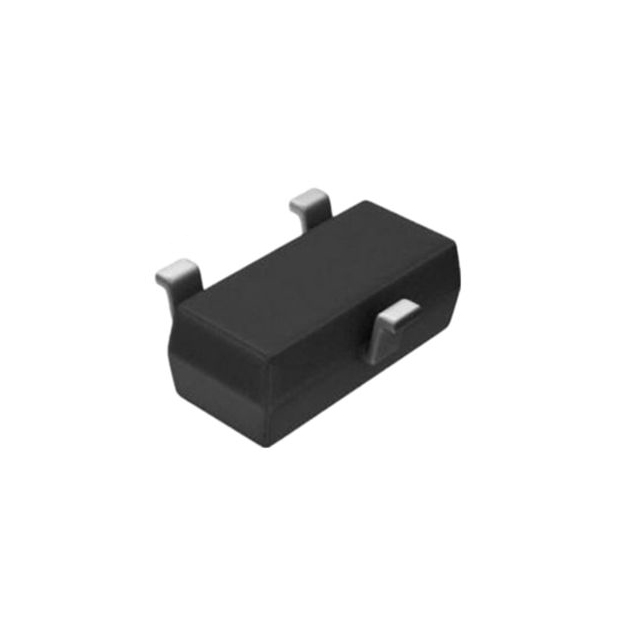

2N7002K

Active

MDD

MOSFET SOT-23 N CHANNEL 60V

Search across all available documentation for this part.

Active

MDD

MOSFET SOT-23 N CHANNEL 60V

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002K

Current - Continuous Drain (Id) @ 25°C	500 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	0.31 nC
Input Capacitance (Ciss) (Max) @ Vds	23.8 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max) [Max]	500 mW
Rds On (Max) @ Id, Vgs [Max]	900 mOhm
Supplier Device Package	SOT-23
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

MOSFET SOT-23 N CHANNEL 60V

Part	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Technology	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) @ 25°C	FET Type	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package
MDD 2N7002K	500 mW	2.5 V	900 mOhm	4.5 V, 10 V	-55 °C	150 °C	23.8 pF	Surface Mount	MOSFET (Metal Oxide)	60 V	SC-59, SOT-23-3, TO-236-3	500 mA	N-Channel	20 V	0.31 nC	SOT-23

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 500mA (Ta) 500mW (Ta) Surface Mount SOT-23
