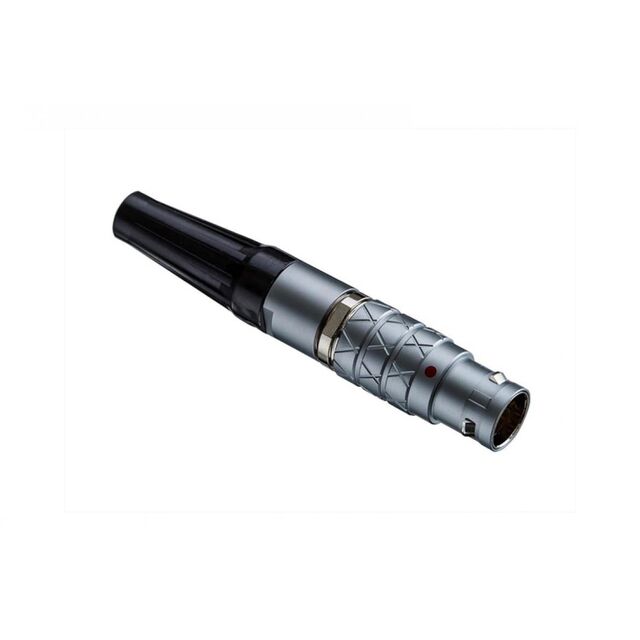

FLBB-03FGMS-GCP-207
ActiveAmphenol LTW
FLOS, B SERIES B SIZE, METAL, 8A, 03 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH PULL, SOLDER, FIELD INSTALLABLE, 4.3 - 5
Deep-Dive with AI
Search across all available documentation for this part.
FLBB-03FGMS-GCP-207
ActiveAmphenol LTW
FLOS, B SERIES B SIZE, METAL, 8A, 03 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH PULL, SOLDER, FIELD INSTALLABLE, 4.3 - 5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLBB-03FGMS-GCP-207 |
|---|---|
| Cable Opening [Max] [diameter] | 5.2 mm |
| Cable Opening [Max] [diameter] | 0.205 in |
| Cable Opening [Min] [diameter] | 0.169 in |
| Cable Opening [Min] [diameter] | 4.3 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 8 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | B-3 |
| Shielding | Shielded |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FLBB-03FGMS Series
3 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
