SFW18R-6STE1LF

Active

Amphenol ICC (FCI)

CONN CIC TOP 18POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFW8R-5STE1LF Datasheet +2

SFW18R-6STE1LF

Active

Amphenol ICC (FCI)

CONN CIC TOP 18POS 1MM R/A

Deep-Dive with AI

DocumentsSFW8R-5STE1LF Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW18R-6STE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	CIC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW18R Series

Part	Contact Material	Voltage Rating	Flat Flex Type	Actuator Color	Pitch [x]	Pitch [x]	Cable End Type	Material Flammability Rating	Contact Finish	FFC, FCB Thickness [z]	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Housing Color	Number of Positions	Termination	Mating Cycles	Mounting Type	Housing Material	Locking Feature	Actuator Material	FFC, FCB Thickness	Features
Amphenol ICC (FCI) SFW18R-1STE1HLF	Phosphor Bronze	100 V	FFC FPC	Black	0.039 in	1 mm	Straight Tapered	UL94 V-0	Tin	0.3 mm 0.33 mm	0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Bottom	Black	18	Solder	20	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free
Amphenol ICC (FCI) SFW18R-7STE1LF			CIC		0.039 in	1 mm			Tin		0.106 in	2.7 mm			Contacts Bottom		18	Solder		Surface Mount Right Angle		Slide Lock
Amphenol ICC (FCI) SFW18R-1STAE5LF	Phosphor Bronze		FPC	Black	0.039 in	1 mm	Tapered	UL94 V-0	Gold		0.106 in	2.7 mm			Contacts Bottom	Brown	18	Solder		Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm
Amphenol ICC (FCI) SFW18R-4STAE9LF	Phosphor Bronze	100 V	FPC	Brown	0.039 in	1 mm	Notched	UL94 V-0	Gold		0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Top	Black	18	Solder		Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm
Amphenol ICC (FCI) SFW18R-2STGE1LF	Phosphor Bronze	100 V	FPC	Black	0.039 in	1 mm	Tapered	UL94 V-0	Gold		0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Top	Brown	18	Solder	20	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm
Amphenol ICC (FCI) SFW18R-2STAE5LF	Phosphor Bronze		FPC	Black	0.039 in	1 mm	Tapered	UL94 V-0	Gold		0.106 in	2.7 mm			Contacts Top	Brown	18	Solder		Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm
Amphenol ICC (FCI) SFW18R-6STE1LF	Phosphor Bronze	100 V	CIC	Black	0.039 in	1 mm	Tapered	UL94 V-0	Tin		0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Top	Brown	18	Solder	10	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm
Amphenol ICC (FCI) SFW18R-3STE1LF	Phosphor Bronze	100 V	FFC FPC	Black	0.039 in	1 mm	Straight	UL94 V-0	Tin		0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Bottom	Black	18	Solder	20	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW18R-4STE1LF	Phosphor Bronze	100 V	FFC FPC	Brown	0.039 in	1 mm	Notched Tapered	UL94 V-0	Tin	0.3 mm 0.33 mm	0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Top	Black	18	Solder	20	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled		Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW18R-5STE1LF	Phosphor Bronze	100 V	CIC	Brown	0.039 in	1 mm	Notched	UL94 V-0	Tin	0.3 mm 0.33 mm	0.106 in	2.7 mm	105 ░C	-55 °C	Contacts Bottom	Brown	18	Solder	10	Surface Mount Right Angle	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.10
		10	$ 0.83
		25	$ 0.75
		50	$ 0.69
		100	$ 0.64
		250	$ 0.58
		500	$ 0.54
		1000	$ 0.50
	Tape & Reel (TR)	2000	$ 0.46
		4000	$ 0.43
		6000	$ 0.42
		10000	$ 0.40
		14000	$ 0.38
		20000	$ 0.38

Description

General part information

SFW18R Series

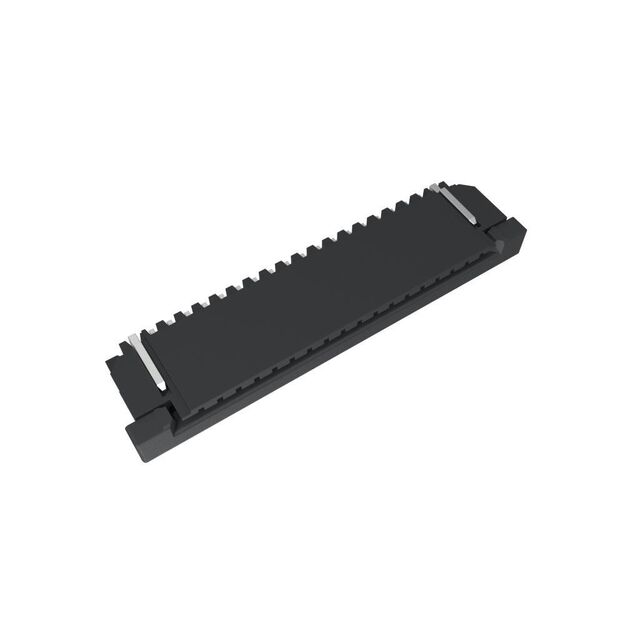

18 Position CIC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle

SFW18R-6STE1LF

Deep-Dive with AI

SFW18R-6STE1LF

Deep-Dive with AI

Technical Specifications

SFW18R Series

Pricing

Description

SFW18R Series

Documents

SFW8R-5STE1LF

Datasheet

SFW4R-6STE1LF

fci basics ffc fpc productpresentation Other Related Document

SFW18R Series
