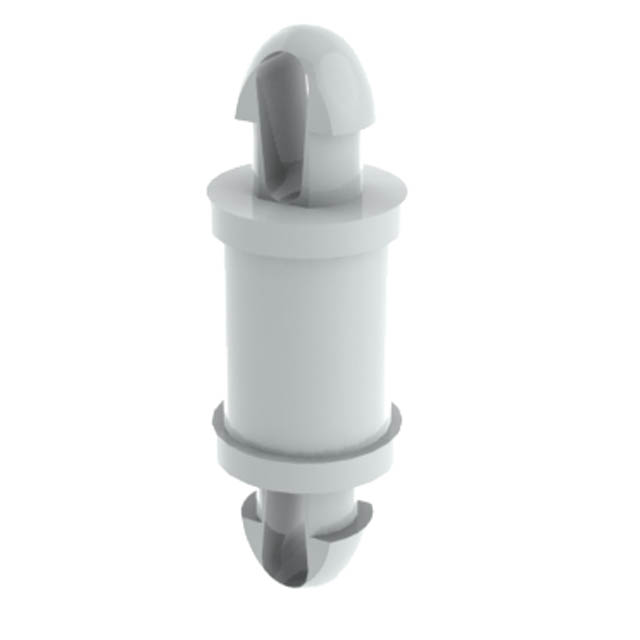

DLCBST-10-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 5/8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLCBST-10-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 5/8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLCBST-10-01 |
|---|---|
| Between Board Height | 15.88 mm |
| Between Board Height | 0.625 in |
| Between Board Height | 0.625 in |
| Holding Type | Snap Lock |
| Length - Overall [x] | 23.16 mm |
| Length - Overall [x] | 0.912 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 2.54 mm |
| Mounting Hole Diameter [diameter] | 0.1 in |
| Mounting Panel Thickness | 0.064 in |
| Mounting Panel Thickness | 1.63 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 2.54 mm |
| Support Hole Diameter [diameter] | 0.1 in |
| Support Panel Thickness | 1.63 mm |
| Support Panel Thickness | 0.064 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 5 | $ 0.48 | |||
| 10 | $ 0.40 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
Description
General part information
DLCBST Series
Board Support Snap Lock / Snap Lock Nylon 0.625" (15.88mm) 5/8"
