BT2M-C

Active

Panduit Corp

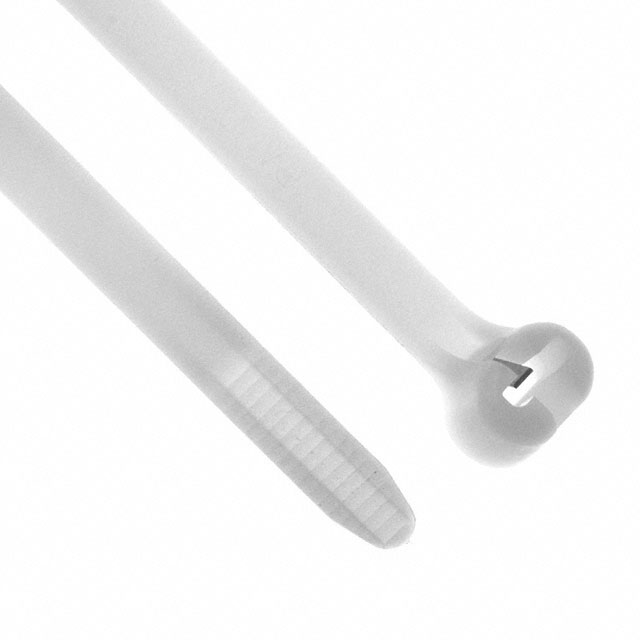

CABLE TIES, DOME TOP BARB NYLON 6/6 NATURAL 51MM 80N PACKAGE

Search across all available documentation for this part.

Active

Panduit Corp

CABLE TIES, DOME TOP BARB NYLON 6/6 NATURAL 51MM 80N PACKAGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT2M-C	BT2M Series

Bundle Diameter [diameter]	50.8 mm	50.8 mm
Bundle Diameter [diameter]	2 in	2 in
Color	Natural	Green, Natural, Gray, Black
Features	-	Heat Stabilized, Weather Resistant
Length - Actual [x]	7.9 in	7.9 in
Length - Actual [x]	0.658 ft	0.658 ft
Length - Actual [x]	200.66 mm	200.66 mm
Length - Approximate	8 in	8 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	18 lbs	18 lbs
Tensile Strength	8.16 kg	8.16 kg
Width [x]	0.095 in	0.095 in
Width [x]	2.41 mm	2.41 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

CBL TIE LOCKING GREEN 18LBS 7.9"

Part	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Material	Mounting Type	Tensile Strength	Tensile Strength	Color	Width [x]	Width [x]	Length - Approximate	Features
Panduit Corp BT2M-M5	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	Green	0.095 in	2.41 mm	8 in
Panduit Corp BT2M-C	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	Natural	0.095 in	2.41 mm	8 in
Panduit Corp BT2M-M8	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	Gray	0.095 in	2.41 mm	8 in
Panduit Corp BT2M-M30	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	Black	0.095 in	2.41 mm	8 in	Heat Stabilized
Panduit Corp BT2M-M3	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg		0.095 in	2.41 mm	8 in
Panduit Corp BT2M-M0	7.9 in	0.658 ft	200.66 mm	Locking, Standard	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	Black	0.095 in	2.41 mm	8 in	Weather Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Natural 2.00" (50.80mm) 0.095" (2.41mm) 18 lbs (8.16 kg)

Technical documentation and resources
