1-1414286-0

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 70A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 70A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPST 70A 12V

Part	Mounting Type	Operate Time	Contact Material	Coil Resistance	Contact Form	Coil Type	Must Release Voltage	Contact Rating (Current)	Termination Style	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Features	Release Time	Relay Type	Coil Voltage
TE Connectivity AMP Connectors 1-1414286-0	Socketable	7 ms	Silver Alloy	90 Ohms	SPST-NO (1 Form A)	Non Latching	1.6 VDC	70 A	Quick Connect - 0.187"/0.250"	133.3 mA	125 °C	-40 °C	7.2 VDC	Diode	2 ms	General Purpose	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

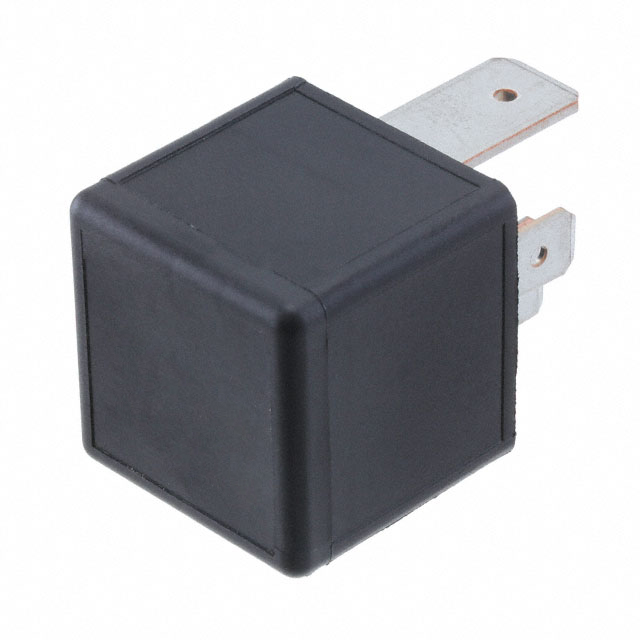

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Socketable
