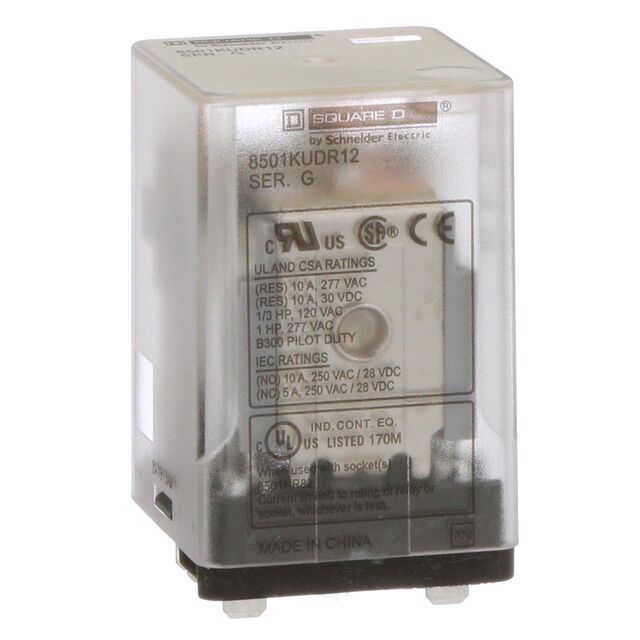

8501KUDR12V60

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO QC PINS 10A@240V 240VA

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO QC PINS 10A@240V 240VA

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Rating (Current)	Termination Style	Contact Form	Operate Time	Mounting Type	Coil Type	Switching Voltage [Max]	Release Time	Relay Type	Load - Max Switching	Contact Material	Features
SQUARE D BY SCHNEIDER ELECTRIC 8501KUDR12V51	-40 °C	55 °C	12 VDC	10 A	Plug In 8 Pin	DPDT (2 Form C)	20 ms	Chassis Mount	Non Latching	30 VDC 300 VAC	20 ms	General Purpose	300 W 3000 VA	Silver Nickel (AgNi)
SQUARE D BY SCHNEIDER ELECTRIC 8501KUDR12V60	-40 °C	55 °C	110 VDC	10 A	Plug In	DPDT (2 Form C)	20 ms	Socketable	Non Latching	30 VDC 300 VAC	20 ms	General Purpose	300 W 3000 VA	Silver Nickel (AgNi)
SQUARE D BY SCHNEIDER ELECTRIC 8501KUDR12V53	-40 °C	55 °C	24 VDC	10 A	Plug In	DPDT (2 Form C)	20 ms	Socketable	Non Latching	30 VDC 300 VAC	20 ms	General Purpose	300 W 3000 VA	Silver Nickel (AgNi)
SQUARE D BY SCHNEIDER ELECTRIC 8501KUDR12P14V53	-40 °C	55 °C	24 VDC	10 A	Plug In	DPDT (2 Form C)	20 ms	Socketable	Non Latching	30 VDC 300 VAC	20 ms	General Purpose	300 W 3000 VA	Silver Nickel (AgNi)	Lighted Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.66
