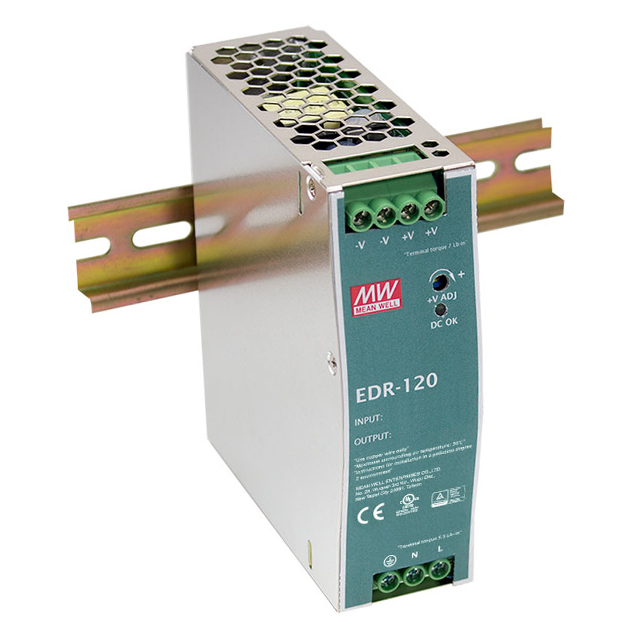

EDR-120-24

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	EDR-120-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	RCM, cULus, TUV, CE, CB
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	87.5 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	113.5 mm
Size / Dimension [x]	4.47 in
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	4.93 in
Size / Dimension [z]	125.2 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Input Type	Features	DC Voltage - Input (Max) [Max]	Applications	DC Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Minimum Load Required	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Isolation
MEAN WELL USA Inc. EDR-120-24	AC or DC	Adjustable Output Universal Input	370 V	Industrial ITE (Commercial)	127 V	1	5 A	87.5 %		4.93 in	1.57 "	113.5 mm	4.47 in	125.2 mm	40 mm	90 VAC	264 VAC	CB CE cULus RCM TUV	60 °C	-20 °C	24 V	3000 V
