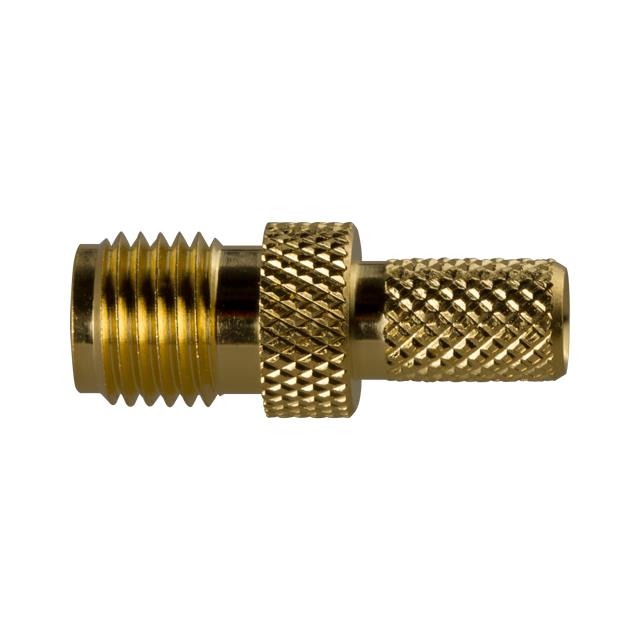

RP-3050-1C1

Active

RF Industries

RP SMA FEMALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP SMA FEMALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-3050-1C1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Center Contact Plating	Connector Style	Number of Ports	Connector Type	Dielectric Material	Voltage Rating	Contact Termination	Body Finish	Mounting Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Housing Color	Impedance	Frequency - Max [Max]
RF Industries RP-3050-1C1	Crimp	Gold	RP-SMA	1	Jack Male Pin	Polytetrafluoroethylene (PTFE)	500 V	Solder	Gold	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	Brass	Gold	50 Ohms	12.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.50

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
