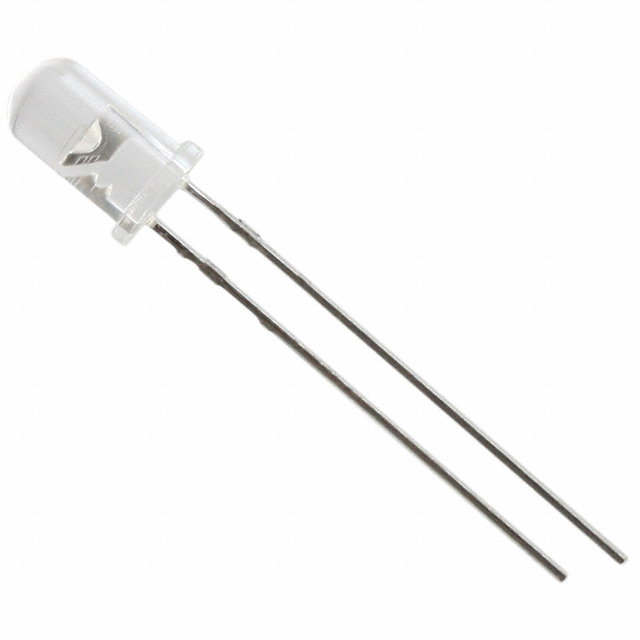

HIR8323/C16
ActiveEverlight Electronics Co Ltd
INFRARED LED, 5MM, 1-ELEMENT, 850NM, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HIR8323/C16
ActiveEverlight Electronics Co Ltd
INFRARED LED, 5MM, 1-ELEMENT, 850NM, ROHS COMPLIANT, PLASTIC PACKAGE-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HIR8323/C16 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min @ If [Min] | 20 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.45 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.01 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.31 | |||
| 2000 | $ 0.29 | |||
| 5000 | $ 0.27 | |||
| 10000 | $ 0.26 | |||
| 25000 | $ 0.25 | |||
Description
General part information
HIR8323 Series
Infrared (IR) Emitter 850nm 1.45V 100mA 20mW/sr @ 20mA 30° Radial
