ME90A2423N02

Active

SL POWER / Advanced Energy

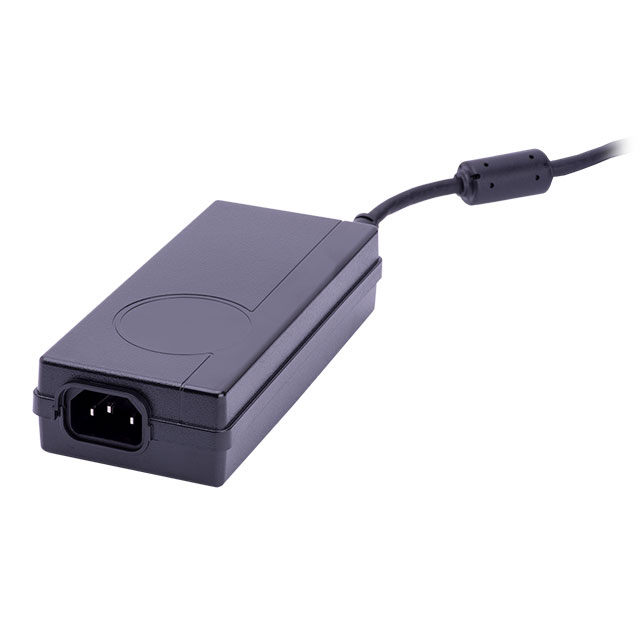

AC/DC DESKTOP ADAPTER 24V 90W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 90W

Technical Specifications

Parameters and characteristics for this part

Part	Input Type	Form	Cord Length	Cord Length	Applications	Weight	Weight	No Load Power Consumption	Output Connector	Output Connector	Voltage - Output	Power (Watts)	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Input Connector	Approval Agency	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
SL POWER / Advanced Energy ME90A2423F02	Cord	Desktop (Class I)	45.3 in	1.15 m	Medical	1.323 lb	0.6 kg	210 mW	8 Pin	DIN	24 V	90 W	International	50 °C	-20 C	3.75 A	IEC 320-C14	CE	Level VI	240 VAC	100 VAC	1.34 in	34 mm	2.58 in	65.5 mm	150 mm	5.91 "
SL POWER / Advanced Energy ME90A2423N02	Cord	Desktop (Class II)	45.3 in	1.15 m	Medical	1.323 lb	0.6 kg	210 mW	8 Pin	DIN	24 V	90 W	International	50 °C	-20 C	3.75 A	IEC 320-C8	CE	Level VI	240 VAC	100 VAC	1.34 in	34 mm	2.58 in	65.5 mm	150 mm	5.91 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 90 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
