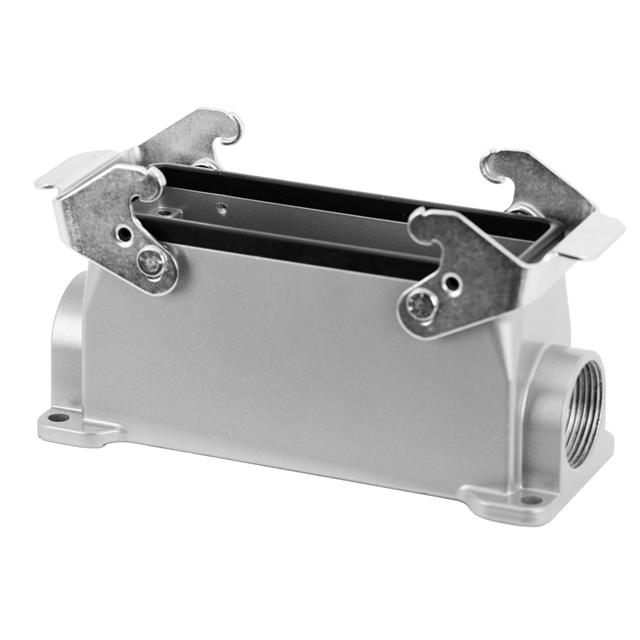

C146 10F024 600 1

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE24 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE24 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10F024 600 1

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	143.5 mm
Size / Dimension [x]	5.65 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	2.52 "
Size / Dimension [z]	64 mm
Style	Side Entry
Thread Size	PG21

Part	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Housing Material	Ingress Protection	Connector Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size	Features
Amphenol Tuchel Industrial C146 10F024 606 1	Locking Clip (1) on Base Bottom	2.52 "	57 mm	143.5 mm	64 mm	5.65 in	2.244 "	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	PG21	100 °C	-40 °C	Side Entry	E24
Amphenol Tuchel Industrial C146 10F024 600 1	Locking Clip (2) on Base Bottom	2.52 "	57 mm	143.5 mm	64 mm	5.65 in	2.244 "	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	PG21	100 °C	-40 °C	Side Entry	E24
Amphenol Tuchel Industrial C146 10F024 806 1	Locking Clip (1) on Base Bottom	2.52 "	57 mm	143.5 mm	64 mm	5.65 in	2.244 "	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	PG21	100 °C	-40 °C	Side Entry	E24	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 26.77

General part information

Base - Box Mount Connector Side Entry PG21 E24 IP65 - Dust Tight, Water Resistant
