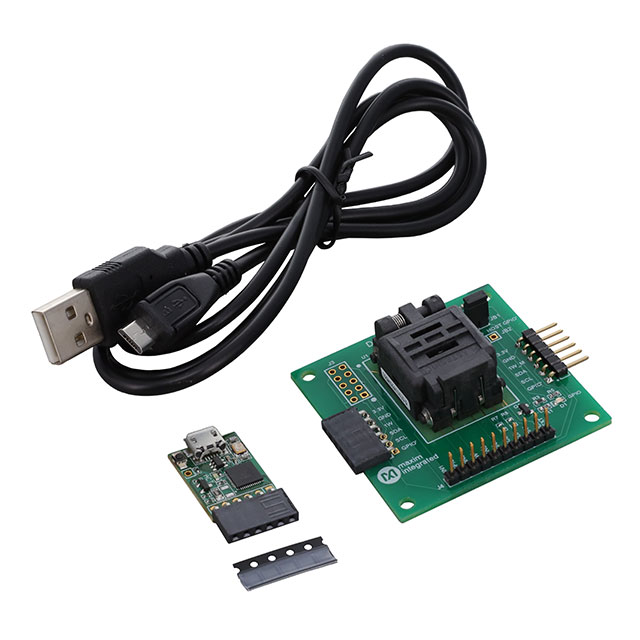

DS28E40EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
1-WIRE AUTOMOTIVE AUTHENTICATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS28E40EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
1-WIRE AUTOMOTIVE AUTHENTICATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS28E40EVKIT# | DS28E40 Series |
|---|---|---|
| Function | 1-Wire to I2C | 1-Wire to I2C |
| Grade | - | Automotive |
| Mounting Type | - | Wettable Flank, Surface Mount |
| Package / Case | - | 10-WFDFN Exposed Pad |
| Primary Attributes | USB Powered | USB Powered |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-TDFN (3x3), 10-TDFN (3x4) |
| Type | Interface | Authentication Chip, Interface |
| Utilized IC / Part | DS28E40 | DS28E40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.57 | |
DS28E40 Series
IC AUTHENTICATION CHIP 10TDFN
| Part | Package / Case | Grade | Supplier Device Package | Type | Qualification | Mounting Type | Primary Attributes | Utilized IC / Part | Function | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS28E40ATB/VY+ | 10-WFDFN Exposed Pad | Automotive | 10-TDFN (3x3) | Authentication Chip | AEC-Q100 | Surface Mount, Wettable Flank | ||||
Analog Devices Inc./Maxim Integrated DS28E40G/V+ | 10-WFDFN Exposed Pad | Automotive | 10-TDFN (3x4) | Authentication Chip | AEC-Q100 | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated DS28E40G/V+T | 10-WFDFN Exposed Pad | Automotive | 10-TDFN (3x4) | Authentication Chip | AEC-Q100 | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated DS28E40EVKIT# | Interface | USB Powered | DS28E40 | 1-Wire to I2C | Board(s) | |||||
Analog Devices Inc./Maxim Integrated DS28E40ATB/VY+T | 10-WFDFN Exposed Pad | Automotive | 10-TDFN (3x3) | Authentication Chip | AEC-Q100 | Surface Mount, Wettable Flank |
Description
General part information
DS28E40 Series
DS28E40 1-Wire to I2C Interface Evaluation Board
Documents
Technical documentation and resources
