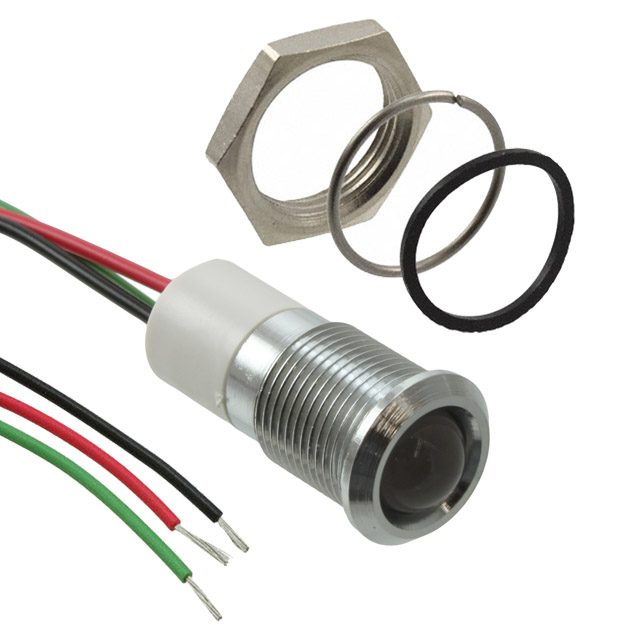

Q14P3CZZRYG12E
ActiveAPEM
LED PMI PROMINENT GRN/RED/YLW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q14P3CZZRYG12E
ActiveAPEM
LED PMI PROMINENT GRN/RED/YLW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14P3CZZRYG12E |
|---|---|
| Current | 20mA Green, 20mA Yellow, 20mA Red |
| Ingress Protection | IP67 |
| Lamp Color | Green, Yellow, Red |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 80 mcd, 50 mcd, 50 mcd |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V, 12 V, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 23.40 | |
| 10 | $ 18.32 | |||
| 100 | $ 16.01 | |||
| 500 | $ 14.68 | |||
Description
General part information
Q14P3CZZRYG Series
LED Panel Indicator Green, Red, Yellow Diffused 100° 12V Green, 12V Red, 12V Yellow 20mA Green, 20mA Red, 20mA Yellow Wire Leads - 7.87" (200.00mm)
