1173C SL013

Active

ALPHA WIRE

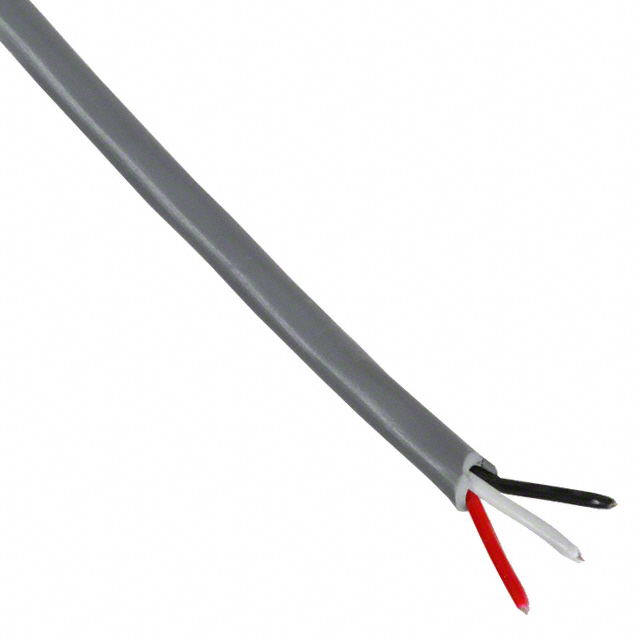

CABLE 3COND 22AWG SLATE FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG SLATE FEET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1173C SL013	1173C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	100 - 500 '
Length	-	30.5 - 152.4 m
Length	-	1000 ft
Length	-	304.8 m
Number of Conductors	3	3
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Ratings	UL Style 2576	UL Style 2576
Spool Size	1524 m	1524 m
Spool Size	5000 '	5000 '
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

SHIELDED MULTI-CONDUCTOR CABLE POLYVINYL CHLORIDE 3CONDUCTORS 22AWG 4.62MM 300VAC SLATE POLYVINYL CHLORIDE 152.4M SPOOL

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Cable Type	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Material	Jacket Color	Conductor Insulation	Number of Conductors	Ratings	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Length	Spool Size	Spool Size
ALPHA WIRE 1173C SL002	Copper, Tinned	-20 C	80 C	Communication, Control	Multi-Conductor	500 '	152.4 m	22 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)	3	UL Style 2576	300 V	7	30 AWG
ALPHA WIRE 1173C SL021	Copper, Tinned	-20 C	80 C	Communication, Control	Multi-Conductor			22 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)	3	UL Style 2576	300 V	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 1173C SL001	Copper, Tinned	-20 C	80 C	Communication, Control	Multi-Conductor			22 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)	3	UL Style 2576	300 V	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 1173C SL005	Copper, Tinned	-20 C	80 C	Communication, Control	Multi-Conductor	100 ft	30.5 m	22 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)	3	UL Style 2576	300 V	7	30 AWG
ALPHA WIRE 1173C SL013	Copper, Tinned	-20 C	80 C	Communication, Control	Multi-Conductor			22 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)	3	UL Style 2576	300 V	7	30 AWG			Enter Number of Feet in Order Quantity	1524 m	5000 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 22 AWG Enter Number of Feet in Order Quantity
