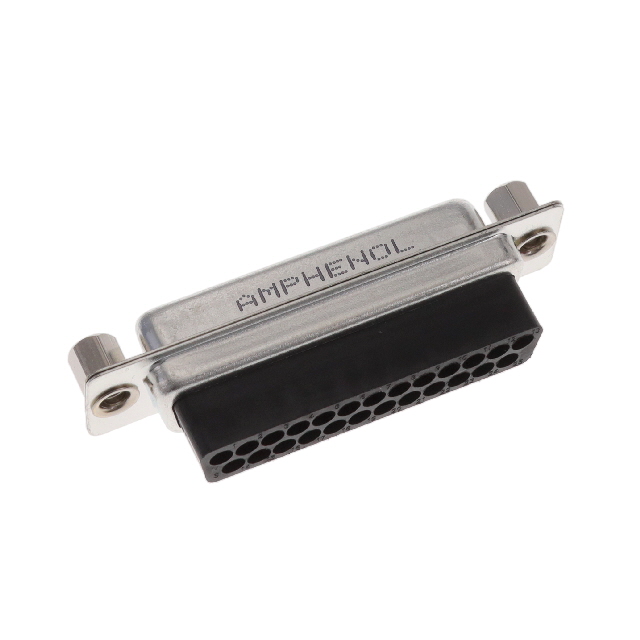

L177RRB25SVF
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 25POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L177RRB25SVF |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.56 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| 450 | $ 0.35 | |||
| 950 | $ 0.34 | |||
Description
General part information
L177RRB25 Series
Receptacle for Female Contacts Housing D-Sub Connector 25 Position
