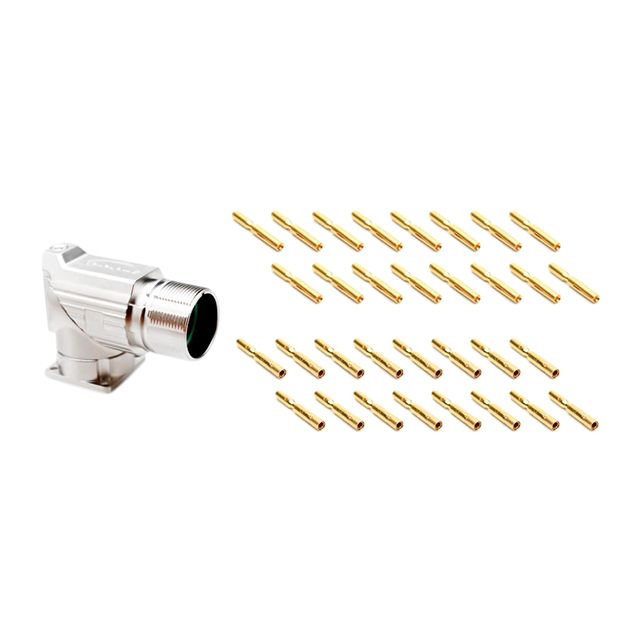

MA5RAP1601S-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 16POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMotionGrade DIN M23/M40 Datasheet +1

MA5RAP1601S-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 16POS GOLD CRIMP

Deep-Dive with AI

DocumentsMotionGrade DIN M23/M40 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA5RAP1601S-KIT

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	9 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Positions	16
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Termination	Crimp
Voltage Rating	125 VAC

MA5RAP Series

Part	Shell Size - Insert	Ingress Protection	Primary Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Color	Mounting Feature	Shell Material	Contact Finish - Mating	Connector Type	Orientation	Features	Current Rating (Amps)	Voltage Rating	Shell Finish	Number of Positions	Shielding	Insert Material	Contact Type	Note	Contact Size	Housing Color	Material Flammability Rating	Contact Shape	Type	Fastening Type
Amphenol Sine Systems Corp MA5RAP1202-KIT	M23-12	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C	12	Crimp	Silver	Flange	Zinc Die Cast	Gold	Male Pins Receptacle	N	Backshell Rotatable	10 A	160 V	Nickel
Amphenol Sine Systems Corp MA5RAP1702S-KIT	M23-17	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C		Crimp	Silver	Flange	Zinc Die Cast	Gold	Receptacle Female Sockets	N	Backshell Rotatable	9 A	125 VAC	Nickel
Amphenol Sine Systems Corp MA5RAP1601S-KIT	M23-16	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C		Crimp	Silver	Flange	Zinc Die Cast	Gold	Receptacle Female Sockets	N	Backshell Rotatable	9 A	125 VAC	Nickel	16
Amphenol Sine Systems Corp MA5RAP1601	M23-16	IP67 - Dust Tight Waterproof		Panel Mount Right Angle	-20 C	130 °C				Flange	Zinc Die Cast		Receptacle Housing	N	Backshell Rotatable			Nickel	16	Shielded	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	1 mm	Silver	UL94 V-0	Circular	For Female Sockets or Male Pins	Push-Twist
Amphenol Sine Systems Corp MA5RAP1202S-KIT	M23-12	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C	12	Crimp	Silver	Flange	Zinc Die Cast	Gold	Receptacle Female Sockets	N	Backshell Rotatable	10 A	160 V	Nickel
Amphenol Sine Systems Corp MA5RAP1701S-KIT	M23-17	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C		Crimp	Silver	Flange	Zinc Die Cast	Gold	Receptacle Female Sockets	N	Backshell Rotatable	9 A	125 VAC	Nickel
Amphenol Sine Systems Corp MA5RAP1701	M23-17	IP67 - Dust Tight Waterproof		Panel Mount Right Angle	-20 C	130 °C				Flange	Zinc Die Cast		Receptacle Housing	N	Backshell Rotatable			Nickel		Shielded	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	1 mm	Silver	UL94 V-0	Circular	For Female Sockets or Male Pins	Push-Twist
Amphenol Sine Systems Corp MA5RAP1701-KIT	M23-17	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C		Crimp	Silver	Flange	Zinc Die Cast	Gold	Male Pins Receptacle	N	Backshell Rotatable	9 A	125 VAC	Nickel
Amphenol Sine Systems Corp MA5RAP1602S-KIT	M23-16	IP67 - Dust Tight Waterproof	Metal	Panel Mount Right Angle	-20 C	130 °C		Crimp	Silver	Flange	Zinc Die Cast	Gold	Receptacle Female Sockets	N	Backshell Rotatable	9 A	125 VAC	Nickel	16
Amphenol Sine Systems Corp MA5RAP1202	M23-12	IP67 - Dust Tight Waterproof		Panel Mount Right Angle	-20 C	130 °C	12			Flange	Zinc Die Cast		Receptacle Housing	P	Backshell Rotatable			Nickel		Shielded	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	1 mm	Silver	UL94 V-0	Circular	For Female Sockets or Male Pins	Push-Twist
