Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNQ7050AJTR | VNQ7050AJ Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 21 A | 21 A |
| Fault Protection | Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage | Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage |
| Features | Status Flag, Auto Restart | Status Flag, Auto Restart |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | Parallel | Parallel |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 4 | 4 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 3.9 mm | 3.9 mm |

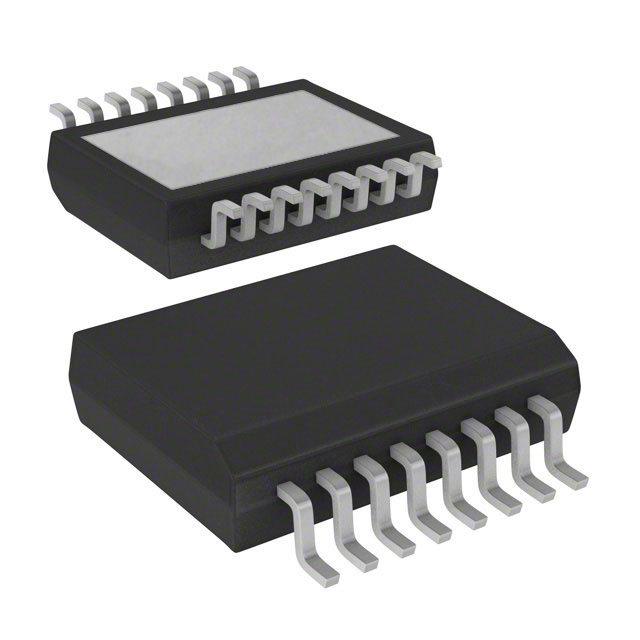

| Package / Case | 16-PowerLFSOP | 16-PowerLFSOP |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 50 mOhm | 50 mOhm |
| Supplier Device Package | PowerSSO-16 | PowerSSO-16 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 28 V | 28 V |
| Voltage - Load [Min] | 4 V | 4 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.49 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.41 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.99 | |||
| 1000 | $ 1.94 | |||
| Digi-Reel® | 1 | $ 3.49 | ||
| 10 | $ 2.63 | |||
| 25 | $ 2.41 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.99 | |||
| 1000 | $ 1.94 | |||
| Tape & Reel (TR) | 2500 | $ 1.72 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.49 | |
| 10 | $ 2.41 | |||
| 25 | $ 2.33 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.18 | |||
| 250 | $ 2.06 | |||
| 500 | $ 2.00 | |||
| 1000 | $ 1.94 | |||
VNQ7050AJ Series
Quad-channel HSD with analog current sense
| Part | Ratio - Input:Output [custom] | Mounting Type | Switch Type | Voltage - Load [Min] | Voltage - Load [Max] | Current - Output (Max) [Max] | Output Configuration | Fault Protection | Input Type | Voltage - Supply (Vcc/Vdd) | Supplier Device Package | Number of Outputs | Rds On (Typ) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Package / Case | Package / Case | Package / Case | Output Type | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNQ7050AJTR | |||||||||||||||||||||
STMicroelectronics VNQ7050AJTR | |||||||||||||||||||||
STMicroelectronics VNQ7050AJTR | |||||||||||||||||||||
STMicroelectronics VNQ7050AJTR | 1:1 | Surface Mount | General Purpose | 4 V | 28 V | 21 A | High Side | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | Non-Inverting | PowerSSO-16 | 4 | 50 mOhm | 150 °C | -40 °C | Auto Restart, Status Flag | 0.154 in | 3.9 mm | 16-PowerLFSOP | N-Channel | Parallel |
Description
General part information
VNQ7050AJ Series
The device is a quad channel high-side driver manufactured using ST proprietary VIPower®M0-7 technology and housed in PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.
The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off.
AFaultRSTpin unlatches the output in case of fault or disables the latch-off functionality.
