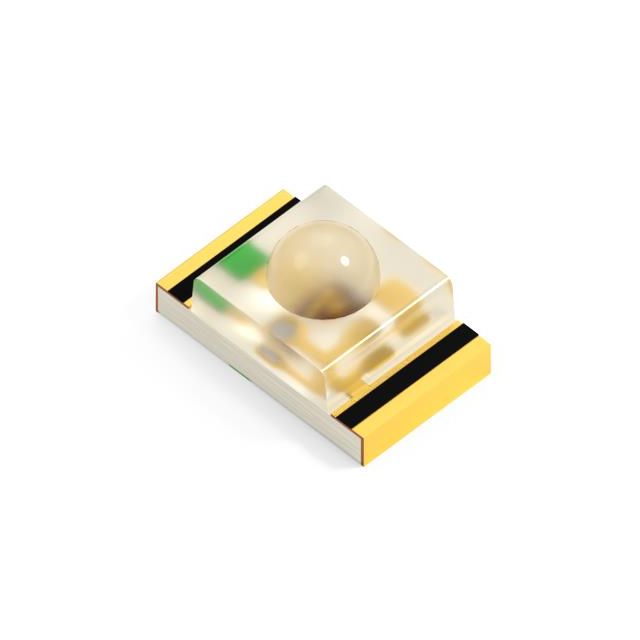

XZMDK54W-8

Active

SunLED

LED RED CLEAR CHIP SMD

Search across all available documentation for this part.

Active

SunLED

LED RED CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Lens Transparency	Current - Test	Mounting Type	Viewing Angle [custom]	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Lens Color	Color	Configuration	Wavelength - Dominant	Supplier Device Package	Lens Style	Millicandela Rating	Lens Size [y]	Lens Size [x]	Viewing Angle	Height (Max) [Max] [z]
SunLED XZMDK54W-8	0805	Clear	20 mA	Surface Mount	40 °	1.2 mm	1.95 V	2 mm	1.25 mm	645 nm	Colorless	Red	Standard	630 nm	Chip LED	Round with Domed Top	1640 mcd
SunLED XZMDK54W-1	0805	Clear	20 mA	Surface Mount			1.95 V	2 mm	1.25 mm	645 nm	Colorless	Red	Standard	630 nm	Chip LED	Rectangle with Flat Top	79 mcd	1.25 mm	1.2 mm	120 °
SunLED XZMDK54W-4	0805	Clear	20 mA	Surface Mount			1.95 V	2 mm	1.25 mm	645 nm	Colorless	Red		630 nm	0805	Rectangle with Flat Top	228 mcd	1.25 mm	1.3 mm	140 °	0.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 630nm LED Indication - Discrete 1.95V 0805 (2012 Metric)
