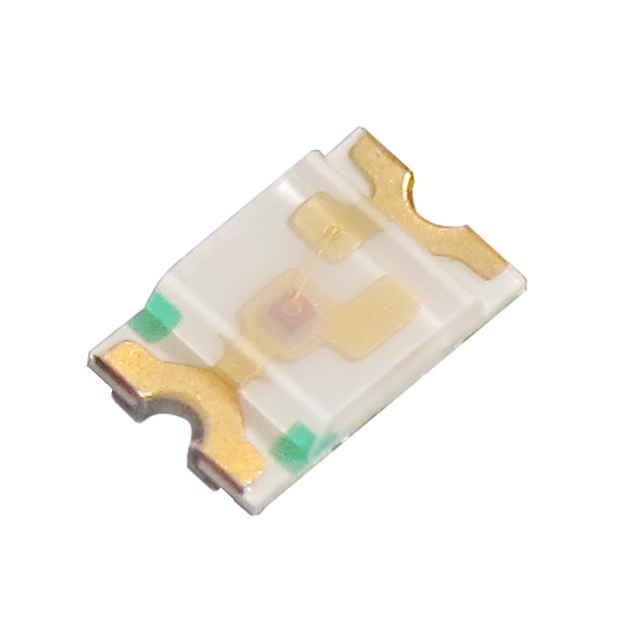

Specification	APHCM2012ZGC/G-F01

Color	Green
Configuration	Independent
Current - Test	20 mA
Height (Max)	0.5 mm
Lens Color	Colorless
Lens Length	1.25 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.2 mm
Millicandela Rating	800 mcd, 700 mcd
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Package Name	2-SMD
Size / Dimension Length	2 mm
Size / Dimension Width	1.25 mm
Viewing Angle	140 °, 110 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant	525 nm
Wavelength - Peak	520 nm

APHCM2012 Series

Part	Viewing Angle	Current - Test	Lens Transparency	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Height (Max)	Wavelength - Dominant	Configuration	Package Name	Millicandela Rating	Mounting Type	Size / Dimension Length	Size / Dimension Width	Color	Lens Width	Lens Length	Lens Style	Wavelength - Peak
Kingbright APHCM2012CGCK-F01	110 ° 140 °	20 mA	Clear	2.1 V	0805 (2012 Metric)	Colorless	0.4 mm	570 nm	Standard	Chip LED	50 mcd	Surface Mount	2 mm	1.25 mm	Green	1.25 mm	1.3 mm	Flat Top Rectangle	574 nm
Kingbright APHCM2012PBC/A-F01	110 °	20 mA	Clear	3.2 V	0805 (2012 Metric)	Colorless	0.4 mm	470 nm	Standard	Chip LED	60 mcd	Surface Mount	2 mm	1.25 mm	Blue	1.25 mm	1.3 mm	Flat Top Rectangle	468 nm
Kingbright APHCM2012SURCK-F01	110 ° 140 °	20 mA	Clear	1.95 V	0805 (2012 Metric)	Colorless	0.4 mm	630 nm	Standard	Chip LED	80 mcd	Surface Mount	2 mm	1.25 mm	Red	1.25 mm	1.3 mm	Flat Top Rectangle	645 nm
Kingbright APHCM2012ZGC/G-F01	110 ° 140 °	20 mA	Clear	3.2 V	0805 (2012 Metric)	Colorless	0.5 mm	525 nm	Independent	2-SMD	700 mcd 800 mcd	Surface Mount	2 mm	1.25 mm	Green	1.2 mm	1.25 mm	Flat Top Rectangle	520 nm
Kingbright APHCM2012ZGC-F01	110 ° 140 °	20 mA	Clear	3.3 V	0805 (2012 Metric)	Colorless	0.4 mm	525 nm	Standard	Chip LED	400 mcd 600 mcd	Surface Mount	2 mm	1.25 mm	Green	1.25 mm	1.3 mm	Flat Top Rectangle	515 nm
Kingbright APHCM2012SECK-F01	110 ° 140 °	20 mA	Clear	2.1 V	0805 (2012 Metric)	Colorless	0.4 mm	601 nm	Standard	Chip LED	180 mcd	Surface Mount	2 mm	1.25 mm	Orange	1.25 mm	1.3 mm	Flat Top Rectangle	610 nm
Kingbright APHCM2012QBC/D-F01	110 ° 140 °	20 mA	Clear	3.3 V	0805 (2012 Metric)	Colorless	0.4 mm	465 nm	Standard	Chip LED	100 mcd	Surface Mount	2 mm	1.25 mm	Blue	1.25 mm	1.3 mm	Flat Top Rectangle	460 nm
Kingbright APHCM2012SYCK-F01	110 ° 140 °	20 mA	Clear	2 V	0805 (2012 Metric)	Colorless	0.4 mm	590 nm	Standard	Chip LED	150 mcd	Surface Mount	2 mm	1.25 mm	Yellow	1.25 mm	1.3 mm	Flat Top Rectangle	590 nm
Kingbright APHCM2012VBC/D	140 °	20 mA	Clear	3.3 V	0805 (2012 Metric)	Colorless	0.5 mm	470 nm	Independent	2-SMD	180 mcd	Surface Mount	2 mm	1.25 mm	Blue	1.2 mm	1.25 mm	Flat Top Rectangle	465 nm
Kingbright APHCM2012ZGCK-F01	110 ° 140 °	20 mA	Clear	3.3 V	0805 (2012 Metric)	Colorless	0.5 mm	525 nm	Independent	2-SMD	350 mcd 550 mcd	Surface Mount	2 mm	1.25 mm	Green	1.2 mm	1.25 mm	Flat Top Rectangle	515 nm
